Search › Model › ZRE171
ZRE171

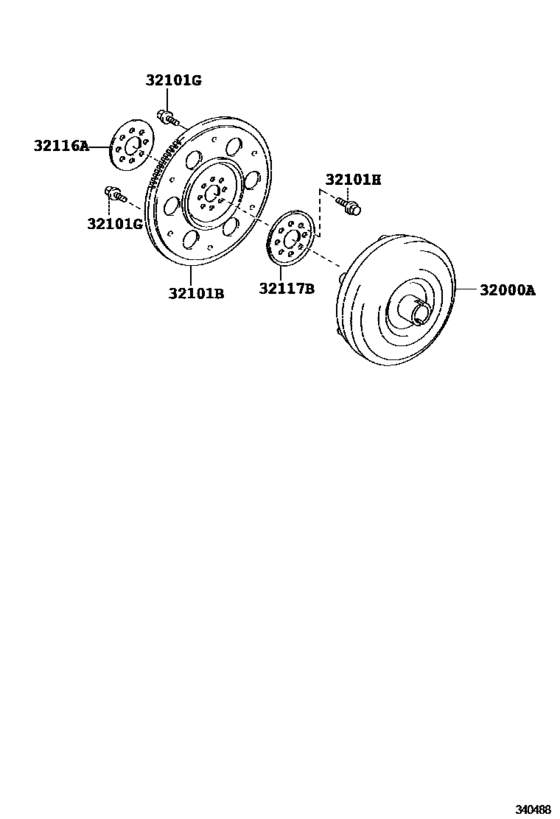

Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) 7
| # | OEM | Part name |
|---|---|---|
| 32000 | 32000-12500 | Converter Assy, Torque |
| 32101 | 32101-12100 | Gear Sub-Assy, Drive Plate & Ring |
| 32101 | 90109-08113 | Bolt(For Drive Plate & Torque Converter Setting) |
| 32101 | 90119-08498 | Bolt(For Drive Plate & Torque Converter Setting) |
| 32101 | 90105-10048 | Bolt, Flywheel Setting |
| 32116 | 32116-12030 | Spacer, Drive Plate, Front |
| 32117 | 32117-12040 | Spacer, Drive Plate, Rear |
| OEM | Part name | Category |
|---|---|---|
| 32000-12500 | Converter Assy, Torque | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 32101-12100 | Gear Sub-Assy, Drive Plate & Ring | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 32116-12030 | Spacer, Drive Plate, Front | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 32117-12040 | Spacer, Drive Plate, Rear | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 90105-10048 | Bolt, Flywheel Setting | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 90109-08113 | Bolt(For Drive Plate & Torque Converter Setting) | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
| 90119-08498 | Bolt(For Drive Plate & Torque Converter Setting) | Torque Converter, Front Oil Pump(Cvt) ([10.2013 - ] K111,K313 (1310- )CVT) |
