| 16261-0T150 |
Hose, Water By-Pass, No.2 |

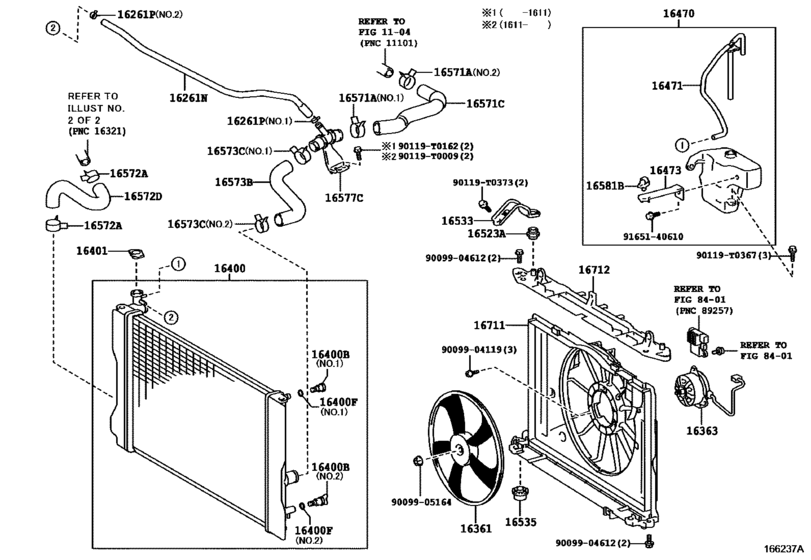

Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16361-0D201 |
Fan |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16363-0T140 |
Motor, Cooling Fan |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16401-05040 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16405-0D100 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16410-0D390 |
Radiator Assy |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16417-0C180 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16417-28530 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16418-20290 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16470-0D050 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16473-64260 |
Support(For Radiator Reserve Tank) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16523-0D060 |
Cushion, Radiator Support |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16533-0T070 |
Support, Radiator, Upper |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16535-0D140 |
Support, Radiator, Lower |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16571-0T170 |
Hose, Radiator, No.1 |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16572-0T130 |
Hose, Radiator, No.2 |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16573-0D100 |
Hose, Radiator, No.3 |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16577-0T070 |
Pipe, Radiator |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16581-22130 |
Clamp, Hose(For Radiator Hose) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16711-0T101 |
Shroud, Fan |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 16712-0D150 |
Shroud, Fan, No.2 |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90099-04612 |
Bolt |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90119-T0009 |
New Genuine Part |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90119-T0162 |
BOLT WWASHER |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90119-T0367 |
New Genuine Part |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90119-T0373 |
New Genuine Part |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90466-T0067 |
Clip, Radiator Hose, No.1 |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 90467-15022 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 91651-40610 |
RIVET |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 96136-41901 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 96136-43901 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2016 - ] (1601- )1ZRFAE,1ZRFBE..CVT) |
