ZRE171

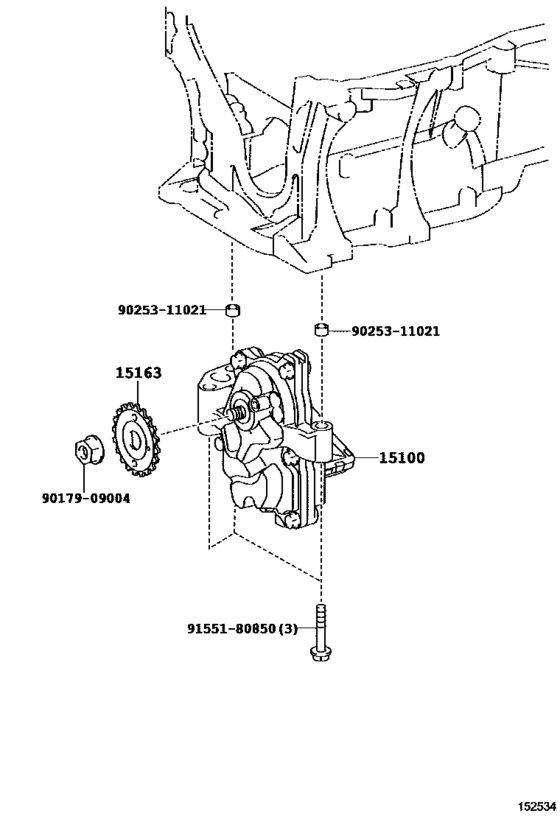

Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) 5
| # | OEM | Part name |
|---|---|---|
| 15100 | 15100-37021 | Pump Assy, Oil |
| 15163 | 15163-28010 | Gear, Oil Pump Drive Shaft |
| 9017909004 | 90179-09004 | NUT |
| 9025311021 | 90253-11021 | Pin, Ring |
| 9155180850 | 91551-80850 | Bolt, Compressor, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 15100-37021 | Pump Assy, Oil | Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) |
| 15163-28010 | Gear, Oil Pump Drive Shaft | Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) |
| 90179-09004 | NUT | Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) |
| 90253-11021 | Pin, Ring | Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) |
| 91551-80850 | Bolt, Compressor, No.1 | Engine Oil Pump ([11.2016 - ] (1611- )1ZRFAE) |
