ZRE162

Toyota COROLLA-AXIO-FIELDER · 2012 · 3,183 parts · 185 categories

3,183 items

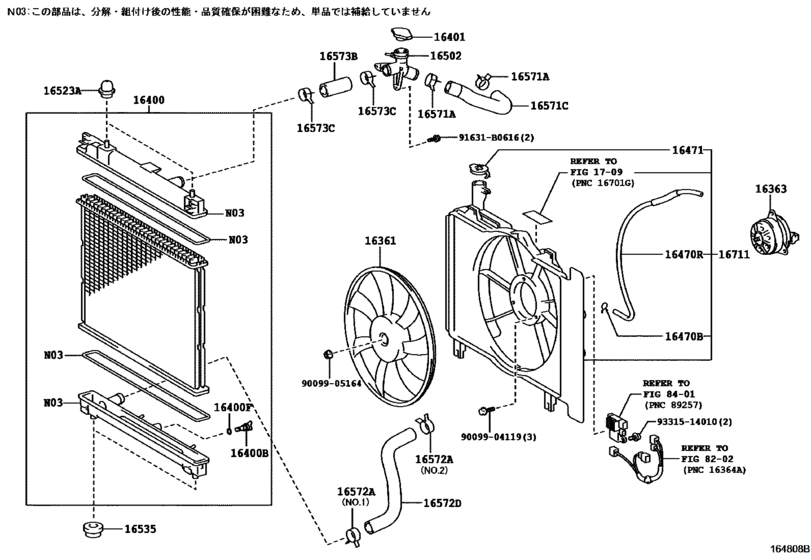

Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE) 54

#	OEM	Part name
12512	12512-37010	Bracket, Alternator, No.2
16261	16261-37031	Hose, Water By-Pass
16261	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16262	16262-37010	Hose, Water Inlet
16262	96136-42501	Clip(For Ventilation Hose)
16264	16264-37031	Hose, Water By-Pass, No.2
16267	16267-37010	Hose, Water By-Pass, No.3
16268	16268-37021	Pipe, Water By-Pass, No.1
16268	16268-37060	Pipe, Water By-Pass, No.1
16282	16260-37050	Hose, Water By-Pass, No.5
16282	96134-41900	Clip Or Clamp(For Ventilation Hose)
16282	96136-52201	Clip(For Ventilation Hose No.2)
16321	16321-37010	Inlet, Water
16323	16323-37040	Housing, Water Inlet
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16326	16326-37030	Gasket, Water Inlet Housing, No.2
16331	90916-03148	Thermostat
16361	16361-21090	Fan
16363	16363-28160	Motor, Cooling Fan
16363	16363-37140	Motor, Cooling Fan
16400	16400-21270	Radiator Assy
16400	16400-21381	RADIATOR ASSY
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-31520	Radiator Cap Sub-Assy (108kPa)
16401	16401-36020	Cap Sub-Assy, Radiator
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	16378-37020	Hose Or Pipe(For Radiator Reserve Tank)
16471	16471-23030	Cap Sub-Assy, Reserve Tank
16502	16502-37010	Filler Sub-Assy, Water
16523	16523-21030	Cushion, Radiator Support
16535	90480-22025	Cushion, Intercooler Support
16571	90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)
16571	16571-37180	Hose, Radiator, No.1
16572	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	90467-37005	Clip(For Water Inlet Hose)
16572	16572-37080	Hose, Radiator, No.2
16573	16573-37030	Hose, Radiator, No.3
16575	90949-01C99	Clip, Radiator Hose, No.5
16575	16575-37030	Bracket, Water Hose Clamp, No.1
16581	16581-21060	Clamp, Hose(For Water Hose)
16581	16581-37130	Clamp, Hose(For Water Hose)
16711	16711-37110	Shroud, Fan
91553	91553-F0830	New Genuine Part
91621	91621-G0818	Bolt(For Automatic Transmission Case Protector)
91631	91631-B0616	BOLT WWASHER
9011908	90119-08A53	BOLT WWASHER
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9331514010	93315-14010	SCREW
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
12512-37010	Bracket, Alternator, No.2	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16260-37050	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16261-37031	Hose, Water By-Pass	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16262-37010	Hose, Water Inlet	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16264-37031	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16267-37010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16268-37021	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16268-37060	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16321-37010	Inlet, Water	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16323-37040	Housing, Water Inlet	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16326-37030	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16361-21090	Fan	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16363-28160	Motor, Cooling Fan	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16363-37140	Motor, Cooling Fan	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16378-37020	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16400-21270	Radiator Assy	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16400-21381	RADIATOR ASSY	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16471-23030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16502-37010	Filler Sub-Assy, Water	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16523-21030	Cushion, Radiator Support	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16571-37180	Hose, Radiator, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16572-37080	Hose, Radiator, No.2	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16573-37030	Hose, Radiator, No.3	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16575-37030	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16581-21060	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16581-37130	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
16711-37110	Shroud, Fan	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90099-05164	Nut	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90119-08A53	BOLT WWASHER	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90480-22025	Cushion, Intercooler Support	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90916-03148	Thermostat	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
90949-01C99	Clip, Radiator Hose, No.5	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
91553-F0830	New Genuine Part	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
91621-G0818	Bolt(For Automatic Transmission Case Protector)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
91631-B0616	BOLT WWASHER	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
93315-14010	SCREW	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
96136-52201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.2012 - ] (1204- )2ZRFAE)
