Search › Model › ZRE162

ZRE162

Toyota COROLLA-AXIO-FIELDER · 2012 · 3,183 parts · 185 categories

3,183 items

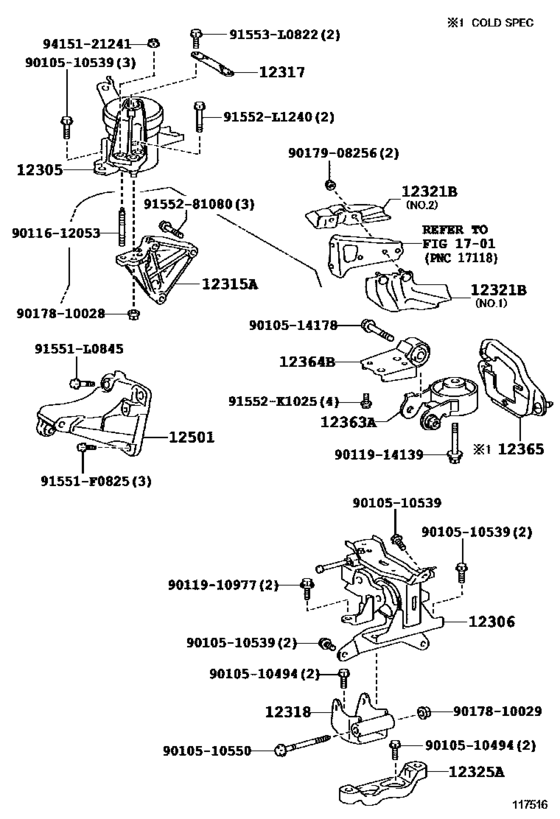

Mounting ([04.2012 - ] (1204- )2ZRFAE) 30

#	OEM	Part name
12305	12305-37270	Insulator Sub-Assy, Engine Mounting, Rh
12306	12306-37030	Insulator Sub-Assy, Engine Mounting, Lh
12315	12315-37050	Bracket, Engine Mounting, Rh(For Transverse Engine)
12317	12317-37010	Stay, Engine Mounting, Rh
12318	12318-37010	Stay, Engine Mounting, Lh
12321	43409-12060	Insulator Sub-Assy, Drive Shaft Heat
12321	43498-12051	Insulator Sub-Assy, Drive Shaft Heat
12325	12325-37120	Bracket, Engine Mounting, Lh(For Transverse Engine)
12363	12363-21150	Rod, Engine Moving Control
12363	12363-21151	Rod, Engine Moving Control
12364	12364-37020	Rod, Engine Moving Control, No.2
12365	12365-40010	Cover, Engine Moving Control Rod
12501	12501-37010	Bracket Sub-Assy, Alternator
91551	91551-F0825	BOLT FLANGE
91551	91551-L0845	BOLT FLANGE
91552	91552-K1025	BOLT FLANGE
91552	91552-L1240	New Genuine Part
91553	91553-L0822	New Genuine Part
9010510494	90105-10494	BOLT FLANGE
9010510539	90105-10539	New Genuine Part
9010510550	90105-10550	BOLT FLANGE
9010514178	90105-14178	Bolt
9011612053	90116-12053	BOLT STUD
9011910977	90119-10977	New Genuine Part
9011914139	90119-14139	New Genuine Part
9017810028	90178-10028	New Genuine Part
9017810029	90178-10029	Nut(For Front Suspension Support)
9017908256	90179-08256	NUT
9155281080	91552-81080	Bolt(For Alternator)
9415121241	94151-21241	Nut(For Front Stabilizer Link)

OEM	Part name	Category
12305-37270	Insulator Sub-Assy, Engine Mounting, Rh	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12306-37030	Insulator Sub-Assy, Engine Mounting, Lh	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12315-37050	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12317-37010	Stay, Engine Mounting, Rh	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12318-37010	Stay, Engine Mounting, Lh	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12325-37120	Bracket, Engine Mounting, Lh(For Transverse Engine)	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12363-21150	Rod, Engine Moving Control	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12363-21151	Rod, Engine Moving Control	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12364-37020	Rod, Engine Moving Control, No.2	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12365-40010	Cover, Engine Moving Control Rod	Mounting ([04.2012 - ] (1204- )2ZRFAE)
12501-37010	Bracket Sub-Assy, Alternator	Mounting ([04.2012 - ] (1204- )2ZRFAE)
43409-12060	Insulator Sub-Assy, Drive Shaft Heat	Mounting ([04.2012 - ] (1204- )2ZRFAE)
43498-12051	Insulator Sub-Assy, Drive Shaft Heat	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90105-10494	BOLT FLANGE	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90105-10539	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90105-10550	BOLT FLANGE	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90105-14178	Bolt	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90116-12053	BOLT STUD	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90119-10977	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90119-14139	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90178-10028	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90178-10029	Nut(For Front Suspension Support)	Mounting ([04.2012 - ] (1204- )2ZRFAE)
90179-08256	NUT	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91551-F0825	BOLT FLANGE	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91551-L0845	BOLT FLANGE	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91552-81080	Bolt(For Alternator)	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91552-K1025	BOLT FLANGE	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91552-L1240	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
91553-L0822	New Genuine Part	Mounting ([04.2012 - ] (1204- )2ZRFAE)
94151-21241	Nut(For Front Stabilizer Link)	Mounting ([04.2012 - ] (1204- )2ZRFAE)
