ZRE162

Toyota COROLLA-AXIO-FIELDER · 2012 · 3,183 parts · 185 categories

← Back to categories

3,183 items

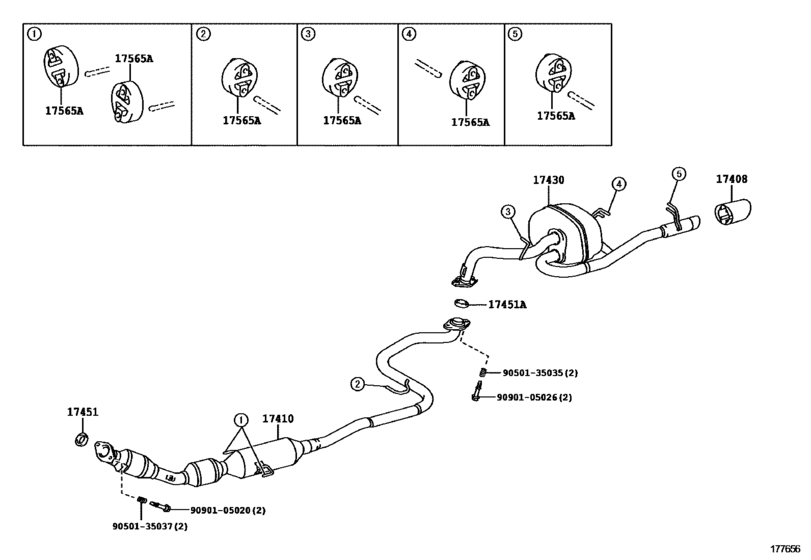

Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE) 11

#	OEM	Part name
17408	17408-46020	Baffle Sub Assy, Exhaust Tail Pipe
17410	17410-37630	Pipe Assy, Exhaust, Front
17430	17430-37310	Pipe Assy, Exhaust, Tail
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	17451-23042	Gasket, Exhaust Pipe, Center
17565	17565-47010	Support, Exhaust Pipe, No.5
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support

OEM	Part name	Category
17408-46020	Baffle Sub Assy, Exhaust Tail Pipe	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17410-37630	Pipe Assy, Exhaust, Front	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17430-37310	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
17565-47010	Support, Exhaust Pipe, No.5	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([04.2012 - ] (1204- )2ZRFAE)

Source: Public OEM parts-catalog data
