Search › Model › ZRE162

ZRE162

Toyota COROLLA-AXIO-FIELDER · 2012 · 3,183 parts · 185 categories

3,183 items

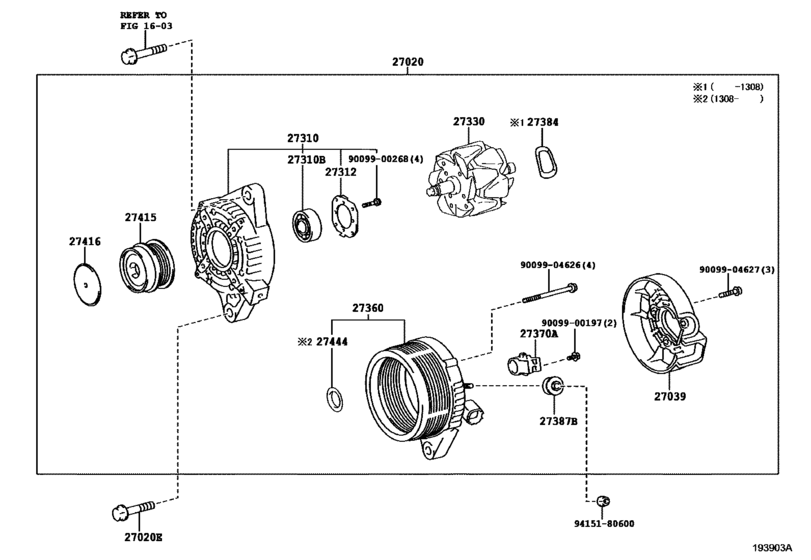

Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE) 23

#	OEM	Part name
27020	27060-37101	Alternator Assy
27020	90105-10307	Bolt(For Alternator)
27039	27039-47330	Cover, Alternator Rear End
27310	27310-37130	Frame Assy, Drive End, Alternator
27310	90099-10223	Bearing(For Alternator Drive End Frame)
27312	27312-72100	Plate, Bearing Retainer, Alternator
27330	27330-47330	Rotor Assy, Alternator
27360	27360-37130	Coil Assy, Alternator
27360	27360-37131	Coil Assy, Alternator
27370	27370-31220	Holder Assy, Alternator Brush
27384	27384-38130	Washer
27387	27387-20130	Insulator, Terminal
27415	27415-0T011	Pulley, Alternator W/clutch
27415	27415-0T060	Pulley, Alternator W/clutch
27415	27416-0W050	Cap, Alternator Pulley
27415	27415-0W021	Pulley, Alternator W/clutch
27416	27416-0W020	Cap, Alternator Pulley
27444	27444-21190	Packing, Alternator Bearing Cover
9009900197	90099-00197	Screw
9009900268	90099-00268	Screw(For Alternator Drive End Frame)
9009904626	90099-04626	Bolt(For Alternator Coil)
9009904627	90099-04627	Bolt(For Alternator Rear End Cover)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
27039-47330	Cover, Alternator Rear End	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27060-37101	Alternator Assy	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27310-37130	Frame Assy, Drive End, Alternator	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27330-47330	Rotor Assy, Alternator	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27360-37130	Coil Assy, Alternator	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27360-37131	Coil Assy, Alternator	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27370-31220	Holder Assy, Alternator Brush	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27384-38130	Washer	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27387-20130	Insulator, Terminal	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27415-0T011	Pulley, Alternator W/clutch	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27415-0T060	Pulley, Alternator W/clutch	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27415-0W021	Pulley, Alternator W/clutch	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27416-0W020	Cap, Alternator Pulley	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27416-0W050	Cap, Alternator Pulley	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
27444-21190	Packing, Alternator Bearing Cover	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90099-00197	Screw	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90099-00268	Screw(For Alternator Drive End Frame)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90099-04626	Bolt(For Alternator Coil)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90099-04627	Bolt(For Alternator Rear End Cover)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90099-10223	Bearing(For Alternator Drive End Frame)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
90105-10307	Bolt(For Alternator)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Alternator ([04.2012 - ] 12V 100A (1204- )2ZRFAE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 185
Collected: 2026-08-02
