ZRE154

Toyota AURIS-COROLLA · 2006 · 4,166 parts · 207 categories

4,166 items

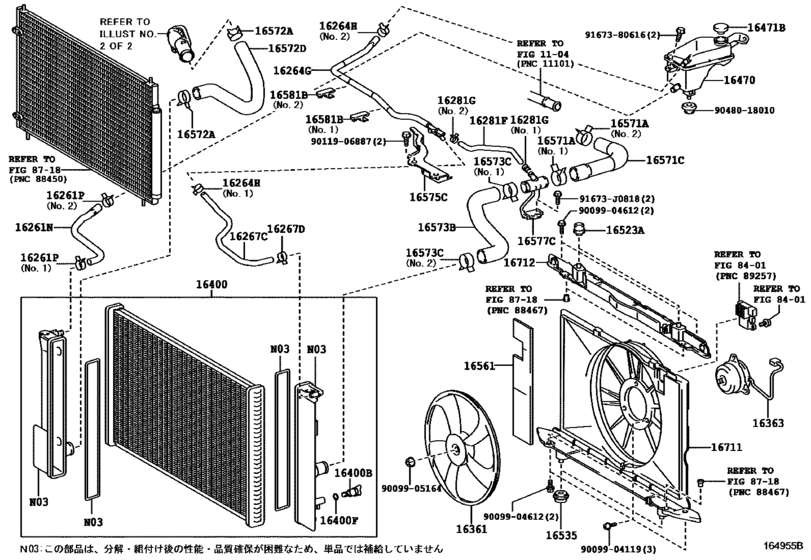

Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#) 52

#	OEM	Part name
16261	16261-21150	Hose, Water By-Pass, No.2
16261	96136-42201	Clip(For Ventilation Hose No.2)
16261	96136-42501	Clip(For Ventilation Hose)
16261	96136-52201	Clip(For Ventilation Hose No.2)
16261	96136-52501	Clip(For Water By-Pass Hose No.1)
16261	16261-21110	Hose, Water By-Pass, No.2
16264	16264-21090	Hose, Water By-Pass, No.2
16264	90467-15022	Clip Or Clamp(For Ventilation Hose)
16264	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16264	96136-52101	Clip(For Ventilation Hose)
16267	16267-21030	Hose, Water By-Pass, No.4
16267	16267-21040	Hose, Water By-Pass, No.4
16281	16281-37040	Hose, Water By-Pass, No.5
16281	90467-17013	Clamp Or Clip(For Water By-Pass Hose No.4)
16281	96136-41901	Clip Or Clamp(For Ventilation Hose)
16281	96136-51901	Clip(For Water By-Pass Hose No.2)
16281	16281-22080	Hose, Water By-Pass, No.5
16361	16361-22100	Fan
16363	16363-22120	Motor, Cooling Fan
16400	16400-22160	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16480-22080	Tank Assy, Radiator Reserve
16471	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28120	Cap Sub-Assy, Reserve Tank
16523	16523-21060	Cushion, Radiator Support
16535	16535-74230	Support, Radiator, Lower
16561	16561-22030	Seal, Radiator To Support, No.1
16571	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16571	16571-22190	Hose, Radiator, No.1
16572	16572-22130	Hose, Radiator, No.2
16573	16573-37040	Hose, Radiator, No.3
16573	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16573	16573-22020	Hose, Radiator, No.3
16575	16575-37020	Bracket, Water Hose Clamp, No.1
16575	16575-22020	Bracket, Water Hose Clamp, No.1
16577	16577-37030	Pipe, Radiator
16577	16577-22020	Pipe, Radiator
16581	16581-22110	Clamp, Hose(For Water Hose)
16581	16581-22120	Clamp, Hose(For Water Hose)
16711	16711-22140	Shroud, Fan
16712	16712-22040	Shroud, Fan, No.2
16712	16712-22041	Shroud, Fan, No.2
91673	91673-J0818	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9011906887	90119-06887	New Genuine Part
9048018010	90480-18010	Grommet, Radiator Reserve Tank Hose
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
16261-21110	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16261-21150	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16264-21090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16267-21030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16267-21040	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16281-22080	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16281-37040	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16361-22100	Fan	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16363-22120	Motor, Cooling Fan	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16400-22160	Radiator Assy	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16475-28120	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16480-22080	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16523-21060	Cushion, Radiator Support	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16535-74230	Support, Radiator, Lower	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16561-22030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16571-22190	Hose, Radiator, No.1	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16572-22130	Hose, Radiator, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16573-22020	Hose, Radiator, No.3	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16573-37040	Hose, Radiator, No.3	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16575-22020	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16575-37020	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16577-22020	Pipe, Radiator	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16577-37030	Pipe, Radiator	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16581-22110	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16581-22120	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16711-22140	Shroud, Fan	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16712-22040	Shroud, Fan, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
16712-22041	Shroud, Fan, No.2	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90099-04612	Bolt	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90099-05164	Nut	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90119-06887	New Genuine Part	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90467-17013	Clamp Or Clip(For Water By-Pass Hose No.4)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
91673-80616	Bolt, W/washer	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
91673-J0818	New Genuine Part	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-41901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-42201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-51901	Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-52101	Clip(For Ventilation Hose)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-52201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
96136-52501	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([10.2006 - ] (0610- )2ZR#)
