Search › Model › ZRE154
ZRE154

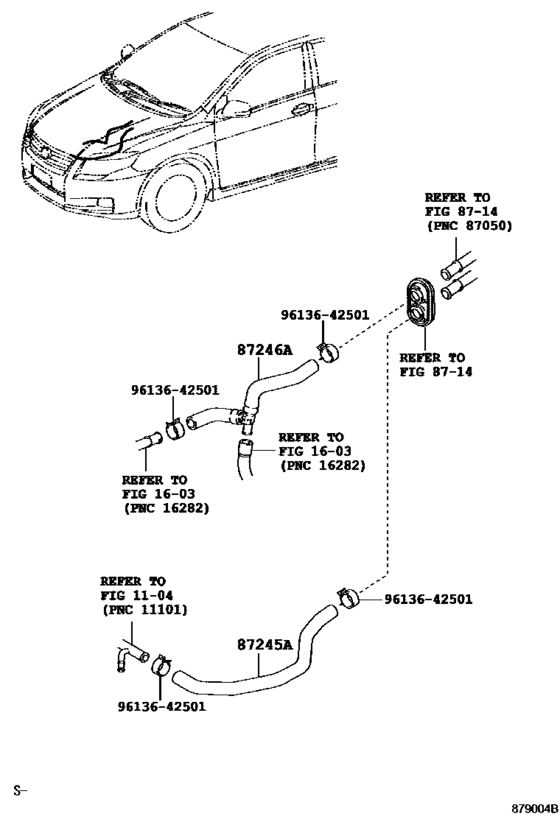

Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-12A00 | Hose, Heater Water, Inlet |
| 87245 | 87245-12G10 | Hose, Heater Water, Inlet |
| 87246 | 87209-12502 | Hose, Heater Water, Outlet |
| 87246 | 87209-12503 | Hose, Heater Water, Outlet |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-12502 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) |
| 87209-12503 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) |
| 87245-12A00 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) |
| 87245-12G10 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([10.2006 - ] (0610- )ZRE15#..CVFC) |
