Search › Model › ZRE154

ZRE154

Toyota AURIS-COROLLA · 2006 · 4,166 parts · 207 categories

4,166 items

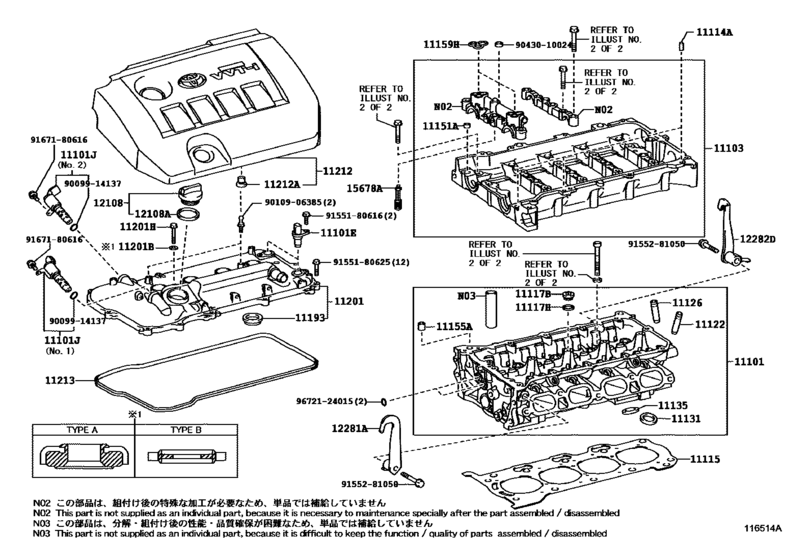

Cylinder Head ([10.2006 - ] (0610- )2ZRFE) 51

#	OEM	Part name
11101	11101-39686	Head Sub-Assy, Cylinder
11101	90919-05060	Sensor, Cam Position
11101	15330-37010	Valve Assy, Camshaft Timing Oil Control
11101	15330-37020	Valve Assy, Camshaft Timing Oil Control
11103	11103-37020	Housing Sub-Assy, Camshaft
11103	11103-37021	Housing Sub-Assy, Camshaft
11114	90250-06001	Pin, Straight
11115	11115-37030	Gasket, Cylinder Head
11115	11115-37061	Gasket, Cylinder Head
11115	11115-37050	Gasket, Cylinder Head
11115	11115-37051	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-31050	Bush, Intake Valve Guide
11122	11123-31050	Bush, Intake Valve Guide
11126	11126-31030	Bush, Exhaust Valve Guide
11126	11127-31030	Bush, Exhaust Valve Guide
11131	11131-37020	Seat, Intake Valve
11131	11131-37040	Seat, Intake Valve
11131	11132-37020	Seat, Intake Valve
11131	11132-37040	Seat, Intake Valve
11135	11135-37020	Seat, Exhaust Valve
11135	11136-37020	Seat, Exhaust Valve
11151	90253-13005	Pin, Ring(For Camshaft Bearing Cap Setting)
11155	90253-12002	Pin, Ring
11159	11159-37010	Gasket, Camshaft Bearing Cap Oil Hole
11193	11193-37020	Gasket, Spark Plug Tube
11201	11201-37020	Cover Sub-Assy, Cylinder Head
11201	11201-37022	Cover Sub-Assy, Cylinder Head
11201	11201-37021	Cover Sub-Assy, Cylinder Head
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11201	91551-80670	Bolt(For Cylinder Head Cover)
11212	11212-37010	Cover, Cylinder Head, No.2
11212	90480-16049	Cushion, Cylinder Head Cover
11213	11213-37020	Gasket, Cylinder Head Cover
11213	11213-37021	Gasket, Cylinder Head Cover
12108	12180-38010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-37020	Hanger, Engine, No.1
12281	12281-37021	Hanger, Engine, No.1
12282	12282-37010	Hanger, Engine, No.2
12282	12282-37011	Hanger, Engine, No.2
15678	15678-37010	Filter, Oil Control Valve
9009914137	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
9010906385	90109-06385	Bolt , V-Bank Cover, No.1
9043010024	90430-10024	Gasket, Camshaft Bearing Cap Oil Hole
9155180616	91551-80616	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155281050	91552-81050	Bolt, No.2(For Alternator)
9167180616	91671-80616	BOLT FLANGE
9672124015	96721-24015	Ring, O(For Oil Strainer)

OEM	Part name	Category
11101-39686	Head Sub-Assy, Cylinder	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11103-37020	Housing Sub-Assy, Camshaft	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11103-37021	Housing Sub-Assy, Camshaft	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11115-37030	Gasket, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11115-37050	Gasket, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11115-37051	Gasket, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11115-37061	Gasket, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11122-31050	Bush, Intake Valve Guide	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11123-31050	Bush, Intake Valve Guide	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11126-31030	Bush, Exhaust Valve Guide	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11127-31030	Bush, Exhaust Valve Guide	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11131-37020	Seat, Intake Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11131-37040	Seat, Intake Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11132-37020	Seat, Intake Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11132-37040	Seat, Intake Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11135-37020	Seat, Exhaust Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11136-37020	Seat, Exhaust Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11159-37010	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11193-37020	Gasket, Spark Plug Tube	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11201-37020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11201-37021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11201-37022	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11212-37010	Cover, Cylinder Head, No.2	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11213-37020	Gasket, Cylinder Head Cover	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
11213-37021	Gasket, Cylinder Head Cover	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
12180-38010	Cap Sub-Assy, Oil Filler	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
12281-37020	Hanger, Engine, No.1	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
12281-37021	Hanger, Engine, No.1	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
12282-37010	Hanger, Engine, No.2	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
12282-37011	Hanger, Engine, No.2	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
15330-37010	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
15330-37020	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
15678-37010	Filter, Oil Control Valve	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90109-06385	Bolt , V-Bank Cover, No.1	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90250-06001	Pin, Straight	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90253-12002	Pin, Ring	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90253-13005	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90430-10024	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90480-16049	Cushion, Cylinder Head Cover	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
90919-05060	Sensor, Cam Position	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
91551-80616	BOLT FLANGE	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
91551-80625	Bolt(For Camshaft Housing Set)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
91551-80670	Bolt(For Cylinder Head Cover)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
91552-81050	Bolt, No.2(For Alternator)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
91671-80616	BOLT FLANGE	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)
96721-24015	Ring, O(For Oil Strainer)	Cylinder Head ([10.2006 - ] (0610- )2ZRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
