ZRE154

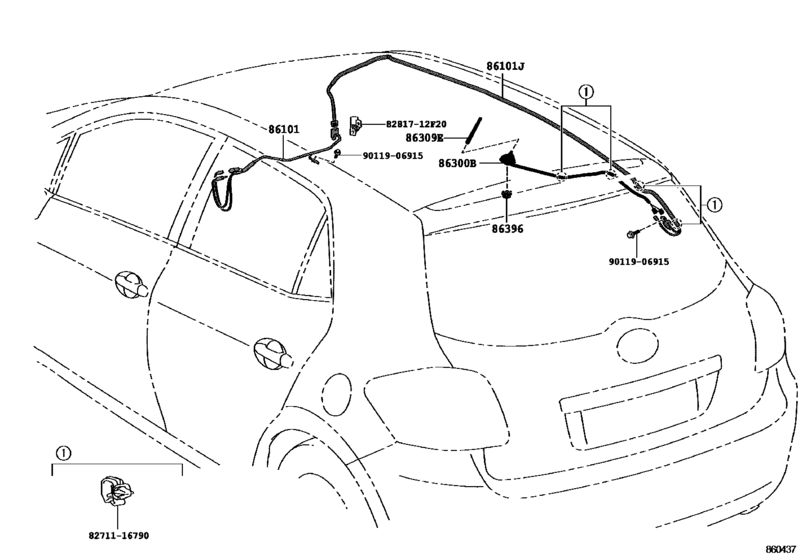

Antenna ([10.2009 - ] (0910- )) 9
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-12460 | Cord Sub-Assy, Antenna |
| 86101 | 86101-12850 | Cord Sub-Assy, Antenna |
| 86101 | 86101-12410 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-12A70 | Antenna Assy, Amplifier, No.1 |
| 86309 | 86309-42070 | Pole Sub-Assy, Antenna |
| 86396 | 86396-20040 | Nut, Antenna |
| 8281712 | 82817-12F20 | Protector, Wiring Harness, No.1 |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-16790 | Clamp, Wiring Harness | Antenna ([10.2009 - ] (0910- )) |
| 82817-12F20 | Protector, Wiring Harness, No.1 | Antenna ([10.2009 - ] (0910- )) |
| 86101-12410 | Cord Sub-Assy, Antenna, No.2 | Antenna ([10.2009 - ] (0910- )) |
| 86101-12460 | Cord Sub-Assy, Antenna | Antenna ([10.2009 - ] (0910- )) |
| 86101-12850 | Cord Sub-Assy, Antenna | Antenna ([10.2009 - ] (0910- )) |
| 86300-12A70 | Antenna Assy, Amplifier, No.1 | Antenna ([10.2009 - ] (0910- )) |
| 86309-42070 | Pole Sub-Assy, Antenna | Antenna ([10.2009 - ] (0910- )) |
| 86396-20040 | Nut, Antenna | Antenna ([10.2009 - ] (0910- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([10.2009 - ] (0910- )) |
