ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories
ZRE153 ×

← Back to categories

3,368 items

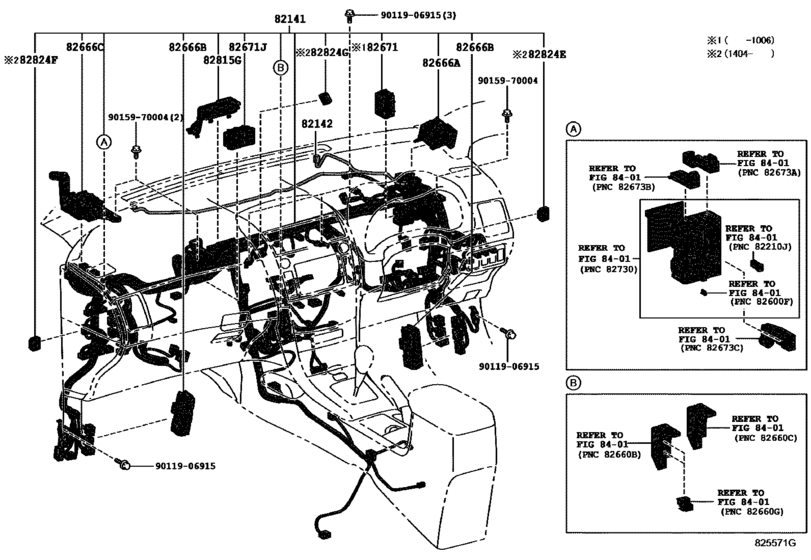

Wiring & Clamp ([07.2007 - ] INSTRUMENT PANEL (0707- )RHD) 20
#OEMPart name
82141 82117-02W00 Wire, Instrument Panel
82141 82145-0ZS00 Wire, Instrument Panel
82141 82145-0ZS01 Wire, Instrument Panel
82141 82145-0ZS20 Wire, Instrument Panel
82141 82145-0ZS21 Wire, Instrument Panel
82141 82145-0ZS40 Wire, Instrument Panel
82141 82145-0ZS41 Wire, Instrument Panel
82141 82146-0ZW50 Wire, Instrument Panel
82141 82146-0ZW51 Wire, Instrument Panel
82141 82146-0ZW60 Wire, Instrument Panel
82141 82146-0ZW61 Wire, Instrument Panel
82142 82142-02110 Wire, Instrument Panel, No.2
82142 82142-02200 Wire, Instrument Panel, No.2
82666 82666-02200 Holder, Connector No.2
82666 82666-02210 Holder, Connector No.2
82666 82666-12430 Holder, Connector No.3
82671 82671-12330 Block, Junction, No.2
82815 82815-12310 Cover, Wiring Harness Protector No.5
9011906915 90119-06915 BOLT W-WASHER
9015970004 90159-70004 SCREW WWASHER
