ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories

← Back to categories

3,368 items

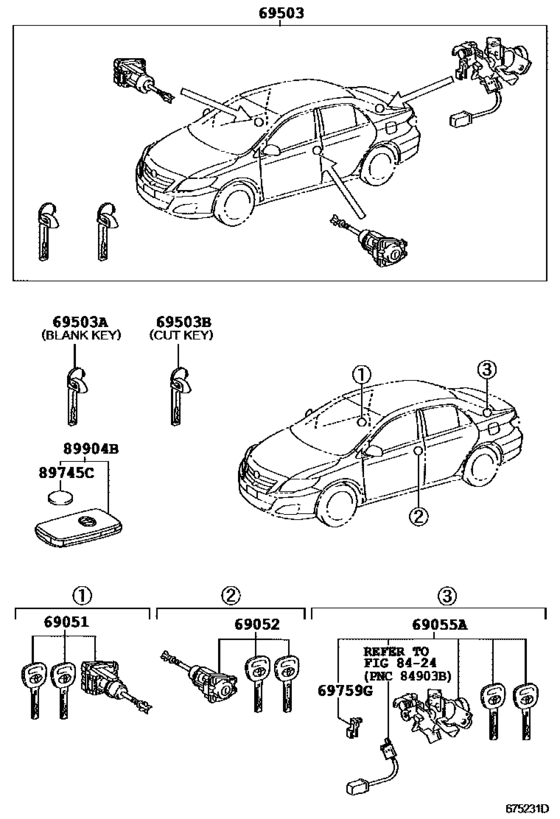

Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- )) 14

#	OEM	Part name
69051	69051-02120	Cylinder & Key Set, Door Lock, Rh
69051	69051-12680	Cylinder & Key Set, Door Lock, Rh
69052	69052-02120	Cylinder & Key Set, Door Lock, Lh
69052	69052-12630	Cylinder & Key Set, Door Lock, Lh
69055	69055-02170	Cylinder & Key Set, Luggage Compartment Lock
69055	69055-12A30	Cylinder & Key Set, Luggage Compartment Lock
69503	69005-02650	Cylinder Set, Lock
69503	69005-12C50	Cylinder Set, Lock
69503	69515-52120	Key, Blank
69503	69515-52110	Key, Cut - for blank key →
69759	69759-24080	Snap, Front Door Lock Control Rod
89745	89745-52030	Battery, Transmitter (CR1632)
89904	89904-12230	Transmitter Sub-Assy, Electrical Key
89904	89904-12231	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-02650	Cylinder Set, Lock	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69005-12C50	Cylinder Set, Lock	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69051-02120	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69051-12680	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69052-02120	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69052-12630	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69055-02170	Cylinder & Key Set, Luggage Compartment Lock	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69055-12A30	Cylinder & Key Set, Luggage Compartment Lock	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69515-52120	Key, Blank	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
69759-24080	Snap, Front Door Lock Control Rod	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
89745-52030	Battery, Transmitter (CR1632)	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
89904-12230	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
89904-12231	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([07.2007 - ] W(SMART ENTRY) (0707- ))
