ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories
ZRE153 ×

← Back to categories

3,368 items

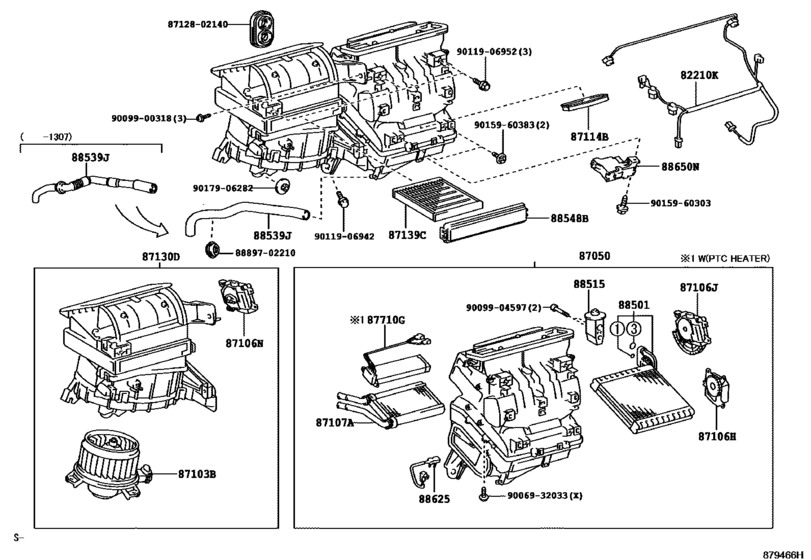

Heating & Air Conditioning - Cooler Unit ([07.2007 - ] AUTO AIR CONDITIONER (0707- )RHD) 35
#OEMPart name
82210 82212-02060 Harness Assy, Air Conditioner
87050 87050-02A30 Radiator Assy, Air Conditioner
87050 87050-02A50 Radiator Assy, Air Conditioner
87103 87103-02300 Motor Sub-Assy, Blower W/fan
87103 87103-02460 Motor Sub-Assy, Blower W/fan
87106 87106-02360 Servo Sub-Assy, Damper(For Airmix)
87106 87106-02370 Servo Sub-Assy, Damper(For Mode)
87106 87106-02350 Servo Sub-Assy, Damper(For Recirculation)
87106 87106-02380 Servo Sub-Assy, Damper(For Recirculation)
87107 87107-02210 Unit Sub-Assy, Heater Radiator
87114 87114-0K010 Cover, Heater
87130 87130-02392 Blower Assy
87130 87130-02411 Blower Assy
87139 87139-30040 Filter, Clean Air
87139 87139-YZZ45 Filter, Clean Air
88501 88501-0K121 Evaporator Sub-Assy, Cooler, No.1
88501 88501-12510 Evaporator Sub-Assy, Cooler, No.1
88515 88515-02160 Valve, Cooler Expansion
88515 88515-02600 Valve, Cooler Expansion
88539 88539-02130 Hose, Drain Cooler
88539 88539-02280 Hose, Drain Cooler
88548 88548-02080 Case, Air Filter
88625 88625-02110 Thermistor, Cooler, No.1
88650 88650-02890 Amplifier Assy, Air Conditioner
88650 88650-02A00 Amplifier Assy, Air Conditioner
8712802140 87128-02140 Grommet, Heater
9006932033 90069-32033 New Genuine Part
9009900318 90099-00318 New Genuine Part
9009904597 90099-04597 Bolt(For Cooler Expansion Valve)
9011906942 90119-06942 BOLT WWASHER
9011906952 90119-06952 New Genuine Part
9015960303 90159-60303 SCREW
9015960383 90159-60383 SCREW WWASHER
9015960383 90159-A0010 SCREW WWASHER TAPP
9017906282 90179-06282 New Genuine Part
