ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories

3,368 items

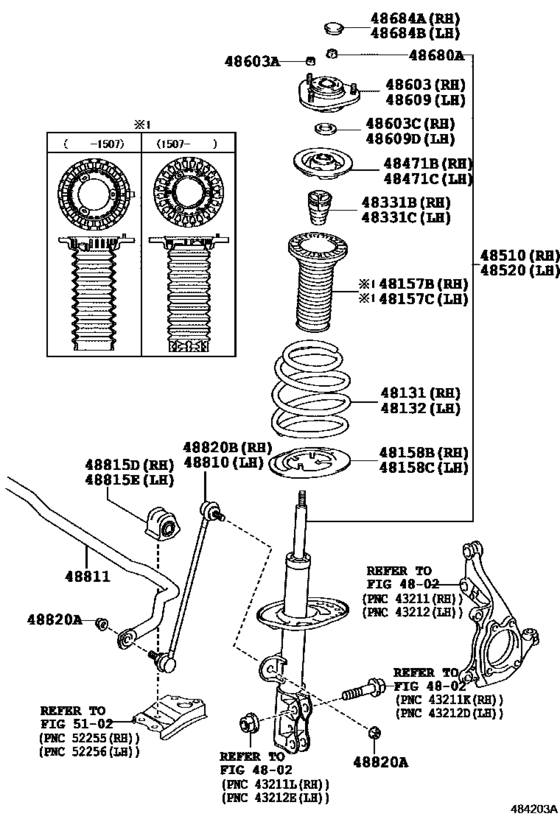

Front Spring & Shock Absorber ([07.2007 - ] (0707- )) 24

#	OEM	Part name
48131	48131-02K90	Spring, Front Coil, Rh
48157	48157-02100	Insulator, Front Coil Spring, Upper Rh
48157	48157-02170	Insulator, Front Coil Spring, Upper Rh
48158	48158-02090	Insulator, Front Coil Spring, Lower Rh
48158	48158-02190	Insulator, Front Coil Spring, Lower Rh
48331	48331-02070	Bumper, Front Spring, Rh
48471	48044-02100	Seat, Front Coil Spring, Upper Rh
48510	48510-09R60	Absorber Assy, Shock, Front Rh
48510	48510-8Z097	Absorber Assy, Shock, Front Rh
48510	48510-8Z050	Absorber Assy, Shock, Front Rh
48520	48520-09K20	Absorber Assy, Shock, Front Lh
48520	48520-8Z008	Absorber Assy, Shock, Front Lh
48520	48520-09X50	Absorber Assy, Shock, Front Lh
48603	48609-02160	Support Sub-Assy, Front Suspension, Rh
48603	48609-02161	Support Sub-Assy, Front Suspension, Rh
48603	90178-10030	Nut(For Front Suspension Support)
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48680	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-05020	Cover, Front Suspension Support Dust, Rh
48810	48820-02070	Link Assy, Front Stabilizer, Lh
48811	48811-02210	Bar, Stabilizer, Front
48815	48815-02150	Bush, Front Stabilizer Bar, Rh
48815	48815-02140	Bush, Front Stabilizer Bar, Lh
48820	90179-12151	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48044-02100	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48131-02K90	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48157-02100	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48157-02170	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48158-02090	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48158-02190	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48331-02070	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48510-09R60	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48510-8Z050	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48510-8Z097	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48520-09K20	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48520-09X50	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48520-8Z008	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48609-02160	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48609-02161	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48684-05020	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48811-02210	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48815-02140	Bush, Front Stabilizer Bar, Lh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48815-02150	Bush, Front Stabilizer Bar, Rh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
48820-02070	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
90178-10030	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([07.2007 - ] (0707- ))
