| 58305-12040 |
Extension Sub-Assy, Rear Floor Side Panel, Rh |

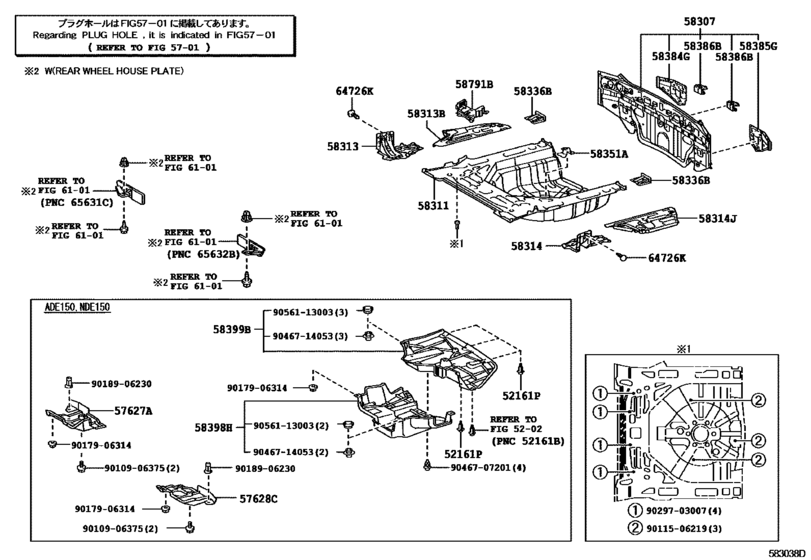

Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58306-12030 |
Extension Sub-Assy, Rear Floor Side Panel, Lh |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58307-02140 |
Panel Sub-Assy, Body Lower Back |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58311-02150 |
Pan, Rear Floor |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58313-02100 |
Panel, Rear Floor Side, Rh |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58314-02100 |
Panel, Rear Floor Side, Lh |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58336-12090 |
Reinforcement, Rear Floor Pan |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58351-12060 |
Bracket, Spare Wheel Carrier |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58384-12170 |
Gusset, Lower Back, Upper Rh |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58385-12150 |
Gusset, Lower Back, Upper Lh |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58386-12020 |
Bracket, Rear Bumper Cover, No.1 |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 58791-12230 |
Carrier, Jack |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 64726-12040 |
Clip, Luggage Trim, Rear |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90109-06375 |
BOLT |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90115-06219 |
Bolt, Weld(For Front Floor Pan, Lh) |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90179-06314 |
NUT |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90189-06230 |
GROMMET SCREW |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90297-03007 |
Retainer, Rear Heater Mounting |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90467-07201 |
Clamp(For Cool Air Intake) |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90467-14053 |
Clip, No.1(For Floor Under Cover) |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
| 90561-13003 |
Clip, No.4(For Floor Under Cover) |
Floor Pan & Lower Back Panel ([07.2007 - ] REAR FLOOR PANEL (0707-0903)ADE150,NDE150 ; (0707- )NRE150,ZRE 15#,ZZE150) |
