ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories

← Back to categories

3,368 items

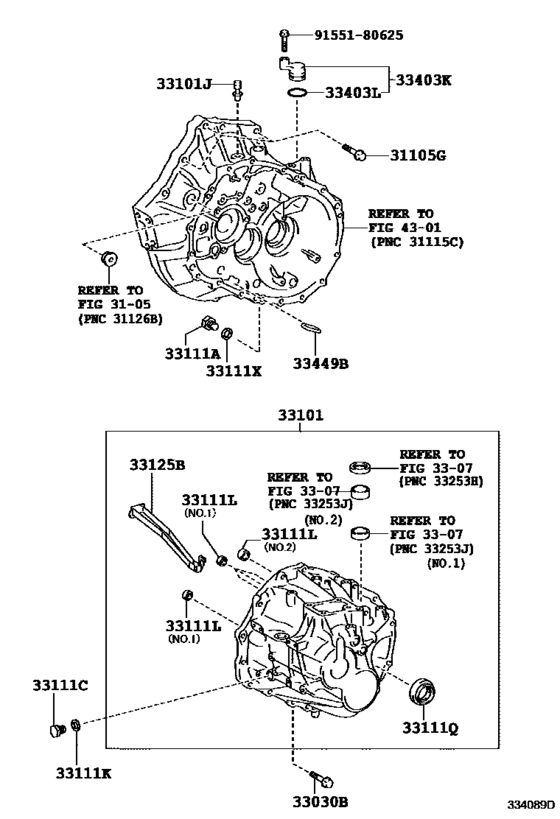

Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F) 18

#	OEM	Part name
31105	91512-61045	Bolt
33030	91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)
33101	33101-20100	Case Sub-Assy, Manual Transmission
33101	90930-03085	Plug, Breather
33111	90341-18006	Plug (No magnet)
33111	90341-18033	Plug(For Manual Transmission Filler)
33111	12157-10010	Gasket (For Drain Plug)
33111	90430-18008	Gasket
33111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33111	90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33111	90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33111	90311-50032	Seal, Oil(For Transmission Case) - OIL, NO.2(FOR TRANSAXLE CASE)
33111	90311-50046	Seal, Oil(For Transmission Case)
33125	33125-20020	Receiver, Manual Transmission Case
33403	33403-20230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24018	Ring, O
33449	33449-60010	Magnet, Transmission
9155180625	91551-80625	Bolt(For Camshaft Housing Set)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
33101-20100	Case Sub-Assy, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
33125-20020	Receiver, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
33403-20230	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
33449-60010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90311-50032	Seal, Oil(For Transmission Case) - OIL, NO.2(FOR TRANSAXLE CASE)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90311-50046	Seal, Oil(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
90930-03085	Plug, Breather	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
91512-61045	Bolt	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
91551-80625	Bolt(For Camshaft Housing Set)	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
96711-24018	Ring, O	Clutch Housing & Transmission Case (Mtm) ([10.2010 - ] EB60 (1010- )ZRE153..6F)
