Search › Model › ZRE153

ZRE153

Toyota COROLLA · 2010 · 3,368 parts · 189 categories

3,368 items

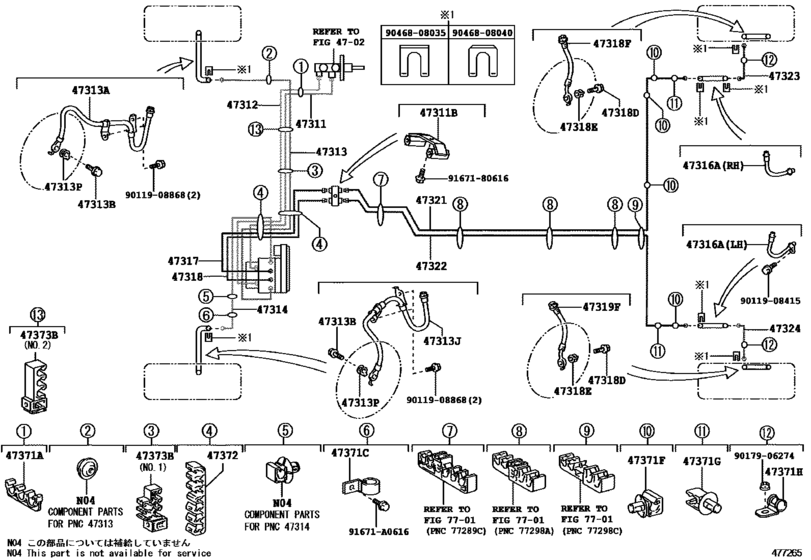

Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153) 43

#	OEM	Part name
47311	47311-02490	Tube, Front Brake, No.1
47311	47311-02500	Tube, Front Brake, No.1
47311	90412-10255	Way, No.1(For Front Brake Tube)
47312	47312-02370	Tube, Front Brake, No.2
47312	47312-02380	Tube, Front Brake, No.2
47313	47313-02440	Tube, Front Brake, No.3
47313	47313-02450	Tube, Front Brake, No.3
47313	90947-W2012	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-W2013	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-02440	Tube, Front Brake, No.4
47314	47314-02450	Tube, Front Brake, No.4
47316	90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47316	90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47317	47317-02360	Tube, Front Brake, No.7
47317	47317-02371	Tube, Front Brake, No.7
47318	47318-02380	Tube, Front Brake, No.8
47318	47318-02391	Tube, Front Brake, No.8
47318	90947-W2016	Hose, Flexible(For Rear Brake Tube)
47321	47321-02210	Tube, Rear Brake, No.1
47322	47322-02210	Tube, Rear Brake, No.2
47323	47323-02090	Tube, Rear Brake, No.3
47324	47324-02090	Tube, Rear Brake, No.4
47371	90464-00868	Clamp, Brake Tube, No.1
47371	90464-00884	Clamp, Brake Tube, No.2
47371	90461-10781	Clamp, Brake Tube, No.6
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90461-10837	Clamp, Brake Tube, No.6
47372	90464-00890	Clamp, Brake Tube, No.1
47372	90464-00895	Clamp, Brake Tube, No.2 - BRAKE TUBE, NO.4
47373	90949-01D42	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5
47373	90949-01D69	Clamp, Brake Tube, No.6
47373	90949-01D70	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5
91671	91671-A0616	BOLT FLANGE
9011908415	90119-08415	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906274	90179-06274	Nut
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
47311-02490	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47311-02500	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47312-02370	Tube, Front Brake, No.2	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47312-02380	Tube, Front Brake, No.2	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47313-02440	Tube, Front Brake, No.3	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47313-02450	Tube, Front Brake, No.3	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47314-02440	Tube, Front Brake, No.4	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47314-02450	Tube, Front Brake, No.4	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47317-02360	Tube, Front Brake, No.7	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47317-02371	Tube, Front Brake, No.7	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47318-02380	Tube, Front Brake, No.8	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47318-02391	Tube, Front Brake, No.8	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47321-02210	Tube, Rear Brake, No.1	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47322-02210	Tube, Rear Brake, No.2	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47323-02090	Tube, Rear Brake, No.3	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47324-02090	Tube, Rear Brake, No.4	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90119-08415	New Genuine Part	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90179-06274	Nut	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90412-10255	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90464-00884	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90464-00890	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90464-00895	Clamp, Brake Tube, No.2 - BRAKE TUBE, NO.4	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90468-08035	CLIP	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90468-08040	CLIP	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90947-W2012	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90947-W2013	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90947-W2016	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90949-01D42	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90949-01D69	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
90949-01D70	Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
91671-80616	BOLT FLANGE	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
91671-A0616	BOLT FLANGE	Brake Tube & Clamp ([10.2010 - ] W(VSC) (1010- )ZRE153)
