Search › Model › ZRE153
ZRE153

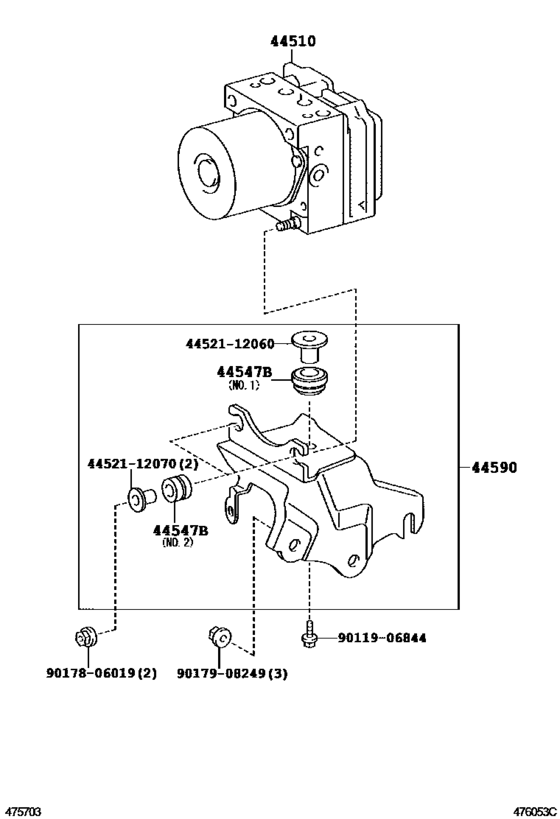

Brake Tube & Clamp ([07.2007 - ] (0707- )) 11
| # | OEM | Part name |
|---|---|---|
| 44510 | 44050-02360 | Actuator Assy, Brake |
| 44510 | 44050-02620 | Actuator Assy, Brake |
| 44547 | 44547-12010 | Cushion, Brake Actuator Bracket |
| 44547 | 44547-12030 | Cushion, Brake Actuator Bracket |
| 44590 | 44590-12120 | Bracket Assy, Brake Actuator |
| 44590 | 44590-12130 | Bracket Assy, Brake Actuator |
| 4452112060 | 44521-12060 | Collar, Brake Actuator Case, No.1 |
| 4452112070 | 44521-12070 | Collar, Brake Actuator Case, No.2 |
| 9011906844 | 90119-06844 | Bolt, Brake Actuator Cushion |
| 9017806019 | 90178-06019 | New Genuine Part |
| 9017908249 | 90179-08249 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 44050-02360 | Actuator Assy, Brake | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44050-02620 | Actuator Assy, Brake | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44521-12060 | Collar, Brake Actuator Case, No.1 | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44521-12070 | Collar, Brake Actuator Case, No.2 | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44547-12010 | Cushion, Brake Actuator Bracket | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44547-12030 | Cushion, Brake Actuator Bracket | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44590-12120 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 44590-12130 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 90119-06844 | Bolt, Brake Actuator Cushion | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 90178-06019 | New Genuine Part | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
| 90179-08249 | New Genuine Part | Brake Tube & Clamp ([07.2007 - ] (0707- )) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 6
- Category
- 189
- Collected
- 2026-08-02
