Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

3,749 items

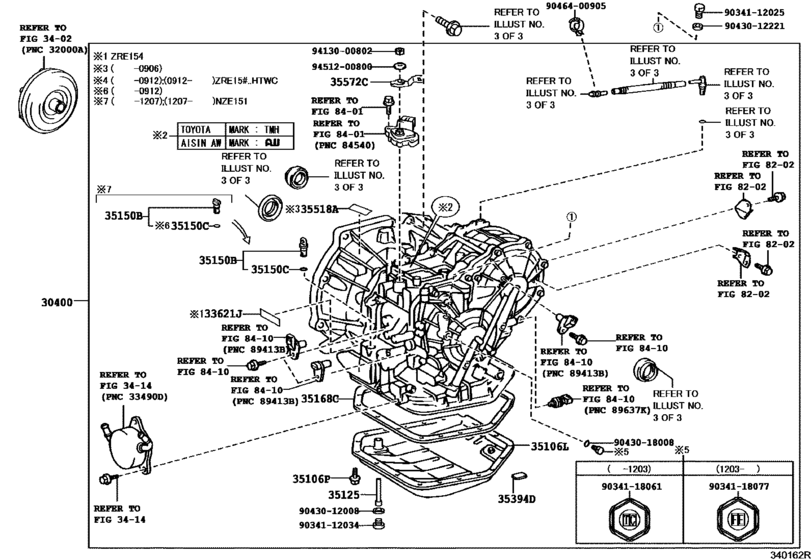

Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S) 36

#	OEM	Part name
30400	30400-12110	Transaxle Assy, Continuously Variable
30400	30400-12111	Transaxle Assy, Continuously Variable
30400	90311-45025	Seal, Type T Oil(For Cvt Oil Pump)
30400	90311-45027	Seal, Type T Oil(For Cvt Oil Pump)
30400	30400-12080	Transaxle Assy, Continuously Variable
35106	35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35125	35125-12400	Tube, Transmission Oil Filler, No.1
35141	35121-12090	Hose(For Breather Plug)
35141	35121-12100	Hose(For Breather Plug)
35141	90301-06005	Ring, O (For Breather Plug)
35141	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35141	90930-03191	Plug, Breather, No.1(Cvt)
35141	90930-03216	Plug, Breather, No.1(Cvt)
35150	35150-44010	Plug(For Transmission Case)
35150	35150-48010	Plug, Transaxle Hole
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35168	35168-12090	Gasket, Transaxle Oil Pan(Cvt)
35168	35168-12091	Gasket, Transaxle Oil Pan(Cvt)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35518	35518-63010	Label, Automatic Transaxle Information, No.2
35572	35572-12160	Lever, Transmission Control Shaft
9034112025	90341-12025	Plug, No.4
9034112034	90341-12034	Plug Sub-Assy, Drain (Atm)
9034118061	90341-18061	Plug, Hole (CVT TC)
9034118077	90341-18077	Plug , Filler(CVT FE)
9043012008	90430-12008	Gasket (For Shift Inter Lock Plate)
9043012221	90430-12221	Gasket
9043018008	90430-18008	Gasket
9043018008	90430-T0021	Gasket(For Manual Transmission Filler Plug)
9046400905	90464-00905	New Genuine Part
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30400-12080	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
30400-12110	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
30400-12111	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35121-12090	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35121-12100	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35125-12400	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35150-44010	Plug(For Transmission Case)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35150-48010	Plug, Transaxle Hole	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35168-12090	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35168-12091	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35518-63010	Label, Automatic Transaxle Information, No.2	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
35572-12160	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90170-A0001	New Genuine Part	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90301-06005	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90311-45025	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90311-45027	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90341-12025	Plug, No.4	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90341-18061	Plug, Hole (CVT TC)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90341-18077	Plug , Filler(CVT FE)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90430-12221	Gasket	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90430-18008	Gasket	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90464-00905	New Genuine Part	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90930-03191	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
90930-03216	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([10.2007 - 12.2012] K310,K311,K311F (0710-1212) ; (1212- )S)
