Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

3,749 items

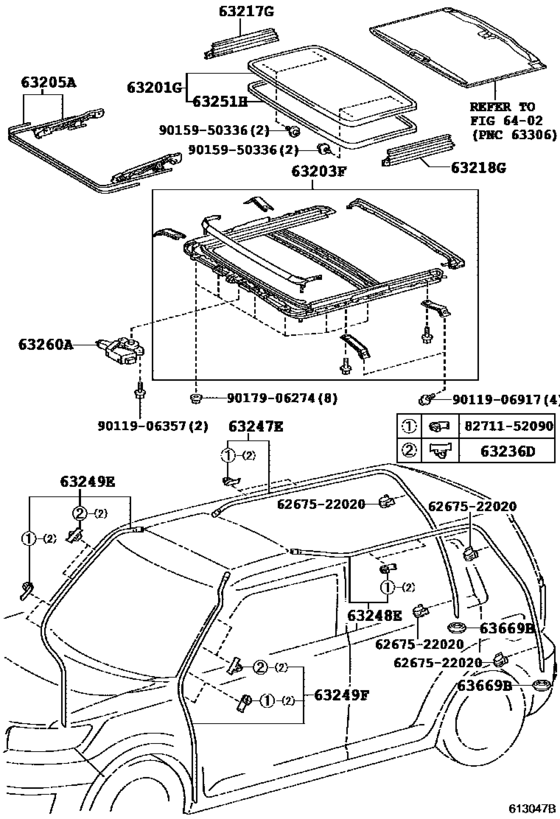

Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S) 21

#	OEM	Part name
63201	63201-12300	Glass Sub-Assy, Sliding Roof
63203	63203-12180	Housing Sub-Assy, Sliding Roof
63205	63205-60010	Cable Sub-Assy, Sliding Roof Drive
63217	63217-12080	Garnish, Sliding Roof Side, Rh
63217	63217-60050	Garnish, Sliding Roof Side, Rh
63218	63218-12090	Garnish, Sliding Roof Side, Lh
63218	63218-60050	Garnish, Sliding Roof Side, Lh
63236	63236-12010	Clamp, Sliding Roof Or Removable Roof Drain Hose
63247	63249-12450	Hose, Sliding Roof Drain, Rear Rh
63248	63249-12460	Hose, Sliding Roof Drain, Rear Lh
63249	63249-12440	Hose, Sliding Roof Drain
63249	63249-12470	Hose, Sliding Roof Drain
63251	63251-12190	Weatherstrip, Sliding Roof
63260	63260-12160	Gear Sub-Assy, Sliding Roof Drive
63669	90480-26020	Grommet, Sliding Roof Drain
6267522020	62675-22020	Plate, Quarter Trim Set, No.2
8271152090	82711-52090	Clamp
9011906357	90119-06357	BOLT WWASHER
9011906917	90119-06917	New Genuine Part
9015950336	90159-50336	SCREW WWASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
62675-22020	Plate, Quarter Trim Set, No.2	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63201-12300	Glass Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63203-12180	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63205-60010	Cable Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63217-12080	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63217-60050	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63218-12090	Garnish, Sliding Roof Side, Lh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63218-60050	Garnish, Sliding Roof Side, Lh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63236-12010	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63249-12440	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63249-12450	Hose, Sliding Roof Drain, Rear Rh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63249-12460	Hose, Sliding Roof Drain, Rear Lh	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63249-12470	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63251-12190	Weatherstrip, Sliding Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
63260-12160	Gear Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
82711-52090	Clamp	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
90119-06357	BOLT WWASHER	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
90119-06917	New Genuine Part	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
90159-50336	SCREW WWASHER	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
90179-06274	Nut	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
90480-26020	Grommet, Sliding Roof Drain	Roof Panel & Back Window Glass ([10.2007 - ] ﾑｰﾝﾙｰﾌ (0710- )G,S)
