Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

← Back to categories

3,749 items

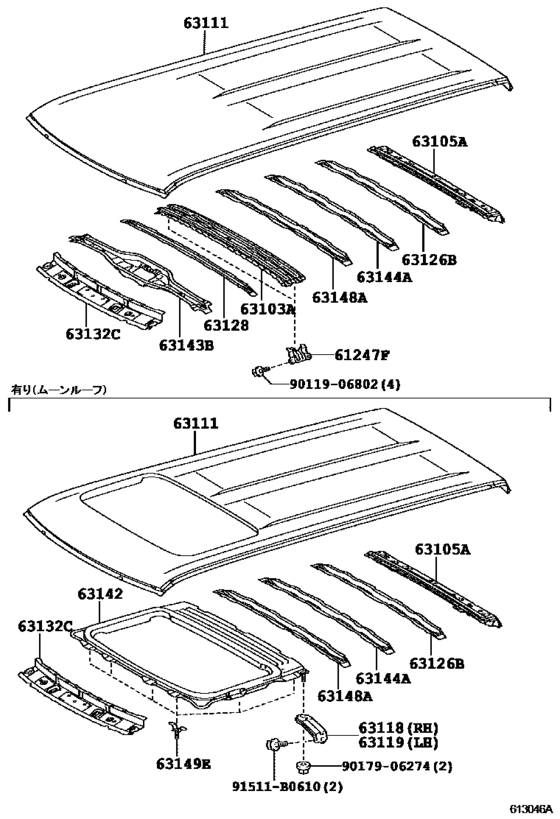

Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- )) 19

#	OEM	Part name
61247	61247-12090	Reinforcement, Roof Side Rail, Inner
63103	63103-12140	Reinforcement Sub-Assy, Roof Panel
63105	63105-12280	Frame Sub-Assy, Back Door Opening
63111	63111-12A20	Panel, Roof
63111	63111-12A30	Panel, Roof
63111	63111-12A50	Panel, Roof
63111	63111-12A60	Panel, Roof
63118	63118-12130	Support, Roof Panel, Rh
63126	63126-12030	Reinforcement, Roof Panel, Rear No.2
63128	63128-12030	Reinforcement, Roof Panel, No.6
63132	63132-12370	Panel, Windshield Header, Inner
63142	63142-12160	Reinforcement, Roof Panel, No.2
63143	63143-12160	Reinforcement, Roof Panel, No.3
63144	63144-12140	Reinforcement, Roof Panel, No.4
63148	63148-12060	Reinforcement, Roof Panel, No.7
63149	63149-12040	Bracket, Roof Panel Reinforcement, No.2
91511	91511-B0610	BOLT FLANGE
9011906802	90119-06802	BOLT WWASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
61247-12090	Reinforcement, Roof Side Rail, Inner	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63103-12140	Reinforcement Sub-Assy, Roof Panel	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63105-12280	Frame Sub-Assy, Back Door Opening	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63111-12A20	Panel, Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63111-12A30	Panel, Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63111-12A50	Panel, Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63111-12A60	Panel, Roof	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63118-12130	Support, Roof Panel, Rh	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63126-12030	Reinforcement, Roof Panel, Rear No.2	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63128-12030	Reinforcement, Roof Panel, No.6	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63132-12370	Panel, Windshield Header, Inner	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63142-12160	Reinforcement, Roof Panel, No.2	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63143-12160	Reinforcement, Roof Panel, No.3	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63144-12140	Reinforcement, Roof Panel, No.4	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63148-12060	Reinforcement, Roof Panel, No.7	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
63149-12040	Bracket, Roof Panel Reinforcement, No.2	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
90119-06802	BOLT WWASHER	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))
91511-B0610	BOLT FLANGE	Roof Panel & Back Window Glass ([10.2007 - ] ﾙｰﾌﾊﾟﾈﾙ (0710- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 200
Collected: 2026-08-02
