Search › Model › ZRE152
ZRE152

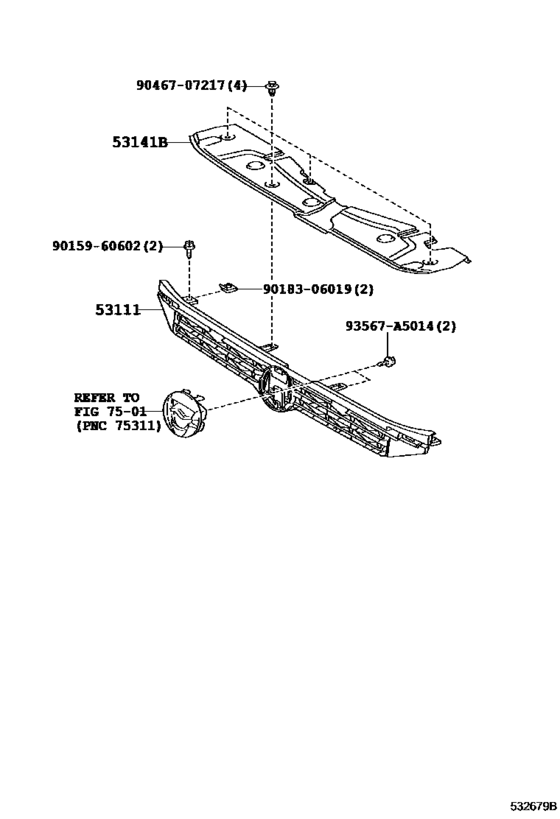

Radiator Grille ([10.2007 - 12.2009] (0710-0912)) 7
| # | OEM | Part name |
|---|---|---|
| 53111 | 53111-12B60 | Grille, Radiator |
| 53141 | 53141-12210 | Garnish, Radiator Grille, No.1 |
| 53141 | 53141-12211 | Garnish, Radiator Grille, No.1 |
| 93567 | 93567-A5014 | SCREW TAPPING |
| 9015960602 | 90159-60602 | SCREW |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 |
| 9046707217 | 90467-07217 | Clip, Radiator Support To Frame Seal |
| OEM | Part name | Category |
|---|---|---|
| 53111-12B60 | Grille, Radiator | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 53141-12210 | Garnish, Radiator Grille, No.1 | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 53141-12211 | Garnish, Radiator Grille, No.1 | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 90159-60602 | SCREW | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 90183-06019 | Clip, Outside Moulding, No.1 | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 90467-07217 | Clip, Radiator Support To Frame Seal | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
| 93567-A5014 | SCREW TAPPING | Radiator Grille ([10.2007 - 12.2009] (0710-0912)) |
