Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

3,749 items

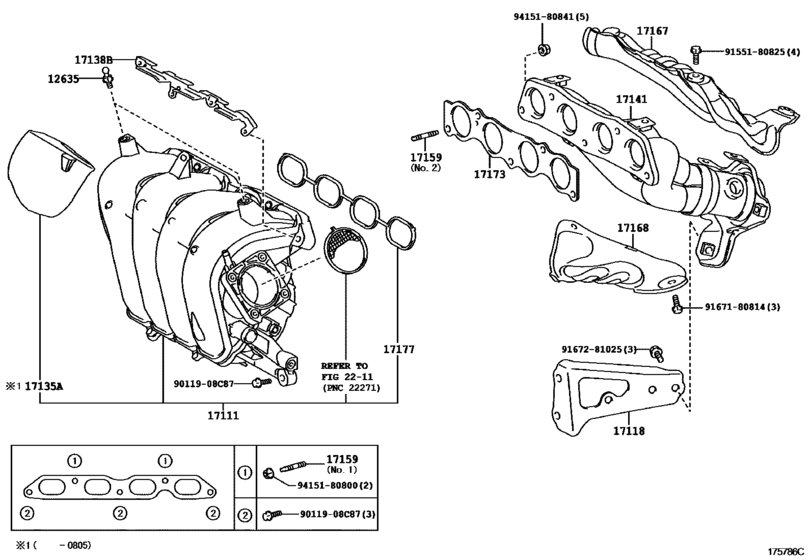

Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152) 21

#	OEM	Part name
12635	90109-06385	Bolt , V-Bank Cover, No.1
17111	17120-37020	Manifold, Intake
17111	17120-37021	Manifold, Intake
17111	17120-37022	Manifold, Intake
17118	17118-37010	Stay, Manifold
17135	17135-37010	Insulator, Intake Manifold, No.1
17138	17138-37010	Stay, Intake Manifold
17141	17141-37051	Manifold, Exhaust
17159	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
17159	90126-08052	Bolt, Stud(For Oil Pan)
17167	17167-37011	Insulator, Exhaust Manifold Heat, No.1
17168	17168-37100	Insulator, Exhaust Manifold Heat, No.2
17173	17173-37010	Gasket, Exhaust Manifold To Head
17177	17177-37030	Gasket, Intake Manifold To Head, No.1
9011908	90119-08C87	New Genuine Part
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9167180814	91671-80814	BOLT FLANGE WWASER
9167180814	90119-A0165	New Genuine Part
9167281025	91672-81025	Bolt, Center Support Bearing Bracket
9415180800	94151-80800	Nut (For Transmission Control Cable)
9415180841	94151-80841	FLANGE NUT

OEM	Part name	Category
17118-37010	Stay, Manifold	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17120-37020	Manifold, Intake	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17120-37021	Manifold, Intake	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17120-37022	Manifold, Intake	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17135-37010	Insulator, Intake Manifold, No.1	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17138-37010	Stay, Intake Manifold	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17141-37051	Manifold, Exhaust	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17167-37011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17168-37100	Insulator, Exhaust Manifold Heat, No.2	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17173-37010	Gasket, Exhaust Manifold To Head	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
17177-37030	Gasket, Intake Manifold To Head, No.1	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
90109-06385	Bolt , V-Bank Cover, No.1	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
90119-08C87	New Genuine Part	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
90119-A0165	New Genuine Part	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
91551-80825	Bolt(For Cylinder Head Set Sub)	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
91671-80814	BOLT FLANGE WWASER	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
94151-80800	Nut (For Transmission Control Cable)	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
94151-80841	FLANGE NUT	Manifold ([10.2007 - 12.2009] (0710-0912)2ZRFE..ZRE152)
