Search › Model › ZRE152
ZRE152

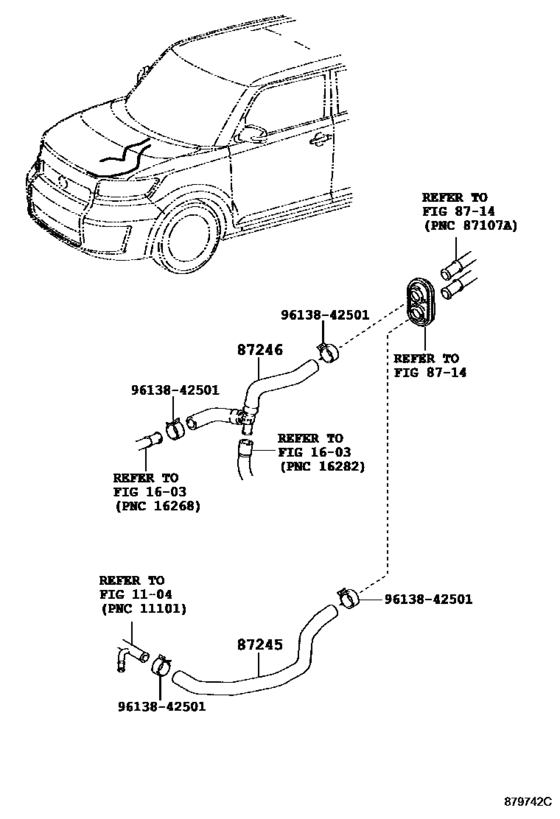

Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-12A00 | Hose, Heater Water, Inlet |
| 87245 | 87245-12G10 | Hose, Heater Water, Inlet |
| 87246 | 87209-12502 | Hose, Heater Water, Outlet |
| 87246 | 87209-12503 | Hose, Heater Water, Outlet |
| 9613842501 | 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) |
| OEM | Part name | Category |
|---|---|---|
| 87209-12502 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) |
| 87209-12503 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) |
| 87245-12A00 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) |
| 87245-12G10 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) |
| 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) | Heating & Air Conditioning - Water Piping ([10.2007 - ] (0710- )ZRE15#) |
