Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

3,749 items

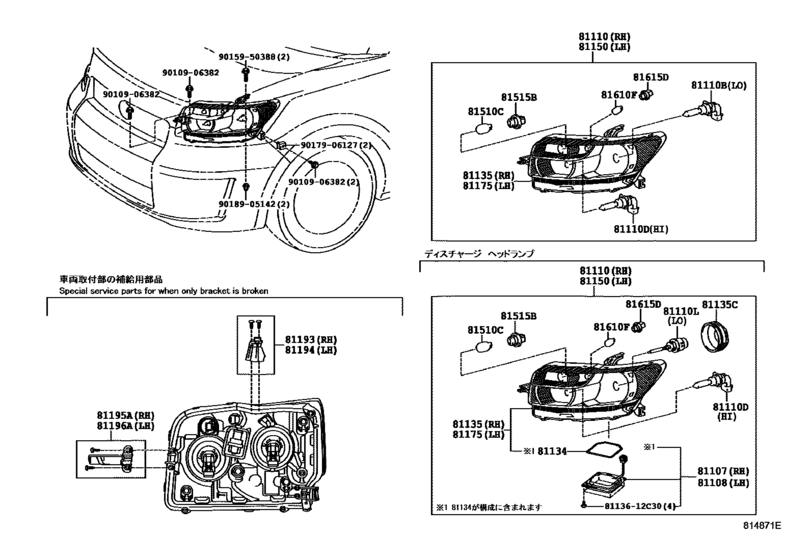

Headlamp ([10.2007 - ] (0710- )) 50

#	OEM	Part name
81107	81107-12C30	Computer Sub-Assy, Headlamp Light Control, Rh
81110	81110-12F40	Headlamp Assy, Rh
81110	81110-12F41	Headlamp Assy, Rh
81110	81110-12J20	Headlamp Assy, Rh
81110	81110-12J21	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-20028	Bulb, Discharge Headlamp
81110	90981-20024	Bulb, Discharge Headlamp
81110	81110-12C00	Headlamp Assy, Rh
81110	81110-12C03	Headlamp Assy, Rh
81110	81110-12C10	Headlamp Assy, Rh
81110	90981-13047	Bulb (HB4)
81110	90981-20018	Bulb, Discharge Headlamp
81134	90075-68007	Gasket, Headlamp
81135	81145-12F40	Unit Assy, Headlamp, Rh
81135	81145-12F41	Unit Assy, Headlamp, Rh
81135	81145-12J20	Unit Assy, Headlamp, Rh
81135	81145-12J21	Unit Assy, Headlamp, Rh
81135	81135-12B30	Cover, Headlamp Back, No.1
81135	81130-12C00	Unit Assy, Headlamp, Rh
81135	81130-12C03	Unit Assy, Headlamp, Rh
81135	81145-12C10	Unit Assy, Headlamp, Rh
81150	81150-12F40	Headlamp Assy, Lh
81150	81150-12F41	Headlamp Assy, Lh
81150	81150-12J20	Headlamp Assy, Lh
81150	81150-12J21	Headlamp Assy, Lh
81150	81150-12C00	Headlamp Assy, Lh
81150	81150-12C03	Headlamp Assy, Lh
81150	81150-12C10	Headlamp Assy, Lh
81175	81185-12F40	Unit Assy, Headlamp, Lh
81175	81185-12F41	Unit Assy, Headlamp, Lh
81175	81185-12J20	Unit Assy, Headlamp, Lh
81175	81185-12J21	Unit Assy, Headlamp, Lh
81175	81170-12C00	Unit Assy, Headlamp, Lh
81175	81170-12C03	Unit Assy, Headlamp, Lh
81175	81185-12C10	Unit Assy, Headlamp, Lh
81193	81193-12110	Retainer, Headlamp Protector, Upper Rh
81194	81194-12090	Retainer, Headlamp Protector, Upper Lh
81195	81195-12120	Retainer, Headlamp Protector, Lower Rh
81196	81196-12120	Retainer, Headlamp Protector, Lower Lh
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	81515-42050	Plug Assy, Front Turn Signal Lamp
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	81138-52570	Socket, Clearance Lamp
8113612	81136-12C30	Protector, Headlamp, No.1 Rh
9010906382	90109-06382	BOLT
9015950388	90159-50388	SCREW, W/WASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81107-12C30	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12C00	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12C03	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12C10	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12F40	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12F41	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12J20	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81110-12J21	Headlamp Assy, Rh	Headlamp ([10.2007 - ] (0710- ))
81130-12C00	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81130-12C03	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81135-12B30	Cover, Headlamp Back, No.1	Headlamp ([10.2007 - ] (0710- ))
81136-12C30	Protector, Headlamp, No.1 Rh	Headlamp ([10.2007 - ] (0710- ))
81138-52570	Socket, Clearance Lamp	Headlamp ([10.2007 - ] (0710- ))
81145-12C10	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81145-12F40	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81145-12F41	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81145-12J20	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81145-12J21	Unit Assy, Headlamp, Rh	Headlamp ([10.2007 - ] (0710- ))
81150-12C00	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12C03	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12C10	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12F40	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12F41	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12J20	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81150-12J21	Headlamp Assy, Lh	Headlamp ([10.2007 - ] (0710- ))
81170-12C00	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81170-12C03	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81185-12C10	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81185-12F40	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81185-12F41	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81185-12J20	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81185-12J21	Unit Assy, Headlamp, Lh	Headlamp ([10.2007 - ] (0710- ))
81193-12110	Retainer, Headlamp Protector, Upper Rh	Headlamp ([10.2007 - ] (0710- ))
81194-12090	Retainer, Headlamp Protector, Upper Lh	Headlamp ([10.2007 - ] (0710- ))
81195-12120	Retainer, Headlamp Protector, Lower Rh	Headlamp ([10.2007 - ] (0710- ))
81196-12120	Retainer, Headlamp Protector, Lower Lh	Headlamp ([10.2007 - ] (0710- ))
81515-42050	Plug Assy, Front Turn Signal Lamp	Headlamp ([10.2007 - ] (0710- ))
90075-68007	Gasket, Headlamp	Headlamp ([10.2007 - ] (0710- ))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([10.2007 - ] (0710- ))
90109-06382	BOLT	Headlamp ([10.2007 - ] (0710- ))
90159-50388	SCREW, W/WASHER	Headlamp ([10.2007 - ] (0710- ))
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([10.2007 - ] (0710- ))
90189-05142	GROMMET, SCREW	Headlamp ([10.2007 - ] (0710- ))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([10.2007 - ] (0710- ))
90981-13047	Bulb (HB4)	Headlamp ([10.2007 - ] (0710- ))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([10.2007 - ] (0710- ))
90981-20018	Bulb, Discharge Headlamp	Headlamp ([10.2007 - ] (0710- ))
90981-20024	Bulb, Discharge Headlamp	Headlamp ([10.2007 - ] (0710- ))
90981-20028	Bulb, Discharge Headlamp	Headlamp ([10.2007 - ] (0710- ))
99132-12050	Bulb (12V 5W)	Headlamp ([10.2007 - ] (0710- ))
