Search › Model › ZRE152

ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories
ZRE152 ×

← Back to categories

3,749 items

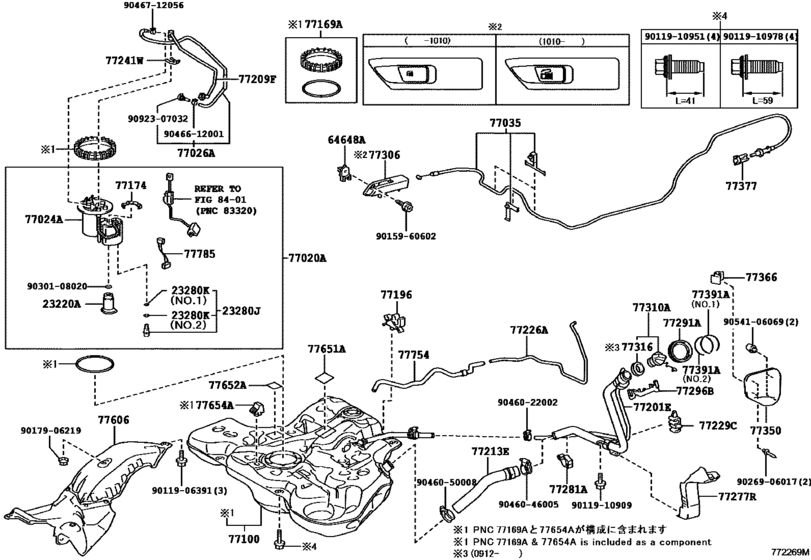

Fuel Tank & Tube ([10.2007 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0710- )NZE151,ZRE152) 68
#OEMPart name
23220 23220-37120 Pump Assy, Fuel W/filter
23220 23220-37121 Pump Assy, Fuel W/filter
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
77020 77020-12620 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-12621 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-12030 Plate Sub-Assy, Fuel Suction
77024 77024-12050 Plate Sub-Assy, Fuel Suction
77026 77026-12030 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-12570 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12B70 Tank Assy, Fuel
77169 77169-52040 Gasket, Fuel Suction Tube Set
77174 77174-12020 Support, Fuel Suction, No.1
77196 77196-12080 Clamp, Evaporation Vent Tube, No.1
77201 77201-12790 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-12791 PIPE SUBASSY FUEL
77201 77216-12190 Support, Fuel Reservoir Filler Pipe, No.1
77201 77217-47080 Support, Fuel Reservoir Filler Pipe, No.2
77201 91626-B0614 BOLT, W/WASHER
77209 77209-12210 Tube Sub-Assy, Fuel Tank Main
77213 77213-12270 Hose, Fuel Tank To Filler Pipe
77226 77226-12060 Tube, Fuel Tank Breather, No.6
77229 77229-12070 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77277 77277-12230 Protector, Fuel Tank Filler Pipe
77281 77281-12100 Clamp, Fuel Filler Pipe
77291 77291-12220 Shield, Fuel Tank Filler Pipe
77296 77296-52030 Support, Fuel Tube Protector, No.1
77306 77306-52030 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-12520 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12060 Retainer, Fuel Filler Opening Lid Lock
77377 77377-52020 Retainer, Fuel Filler Opening Lid Lock
77377 77377-75010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-46010 Ring, Fuel Inlet Box
77606 77606-12130 Protector Sub-Assy, Fuel Tank, No.1
77651 77651-12070 Cushion, Fuel Tank, No.1
77652 77652-45020 Cushion, Fuel Tank, No.2
77654 77654-12090 Cushion, Fuel Tank, No.4
77754 77754-12160 Hose, Charcoal Canister Outlet, No.1
77754 77754-12161 Hose, Charcoal Canister Outlet, No.1
77785 77785-12020 Harness, Fuel Pump
77785 77785-12021 Harness, Fuel Pump
9011906391 90119-06391 Bolt, W/Washer
9011910909 90119-10909 Bolt
9011910951 90119-10951 BOLT WWASHER
9011910978 90119-10978 New Genuine Part
9015960602 90159-60602 SCREW
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046612001 90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9054106069 90541-06069 CUSHION
9092307032 90923-07032 New Genuine Part
