ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

← Back to categories

3,749 items

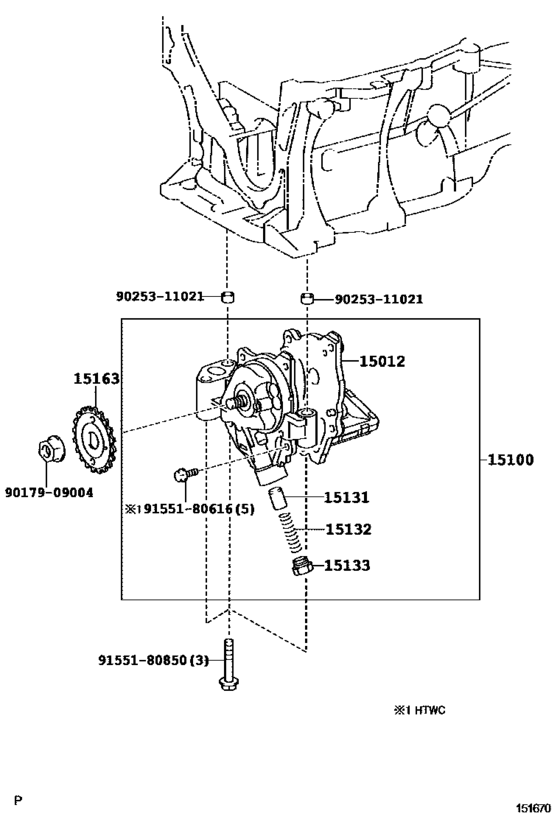

Engine Oil Pump ([10.2007 - ] (0710- )2ZR#) 12

#	OEM	Part name
15012	15012-37010	Cover Sub-Assy, Oil Pump
15100	15100-37020	Pump Assy, Oil
15100	15100-37021	Pump Assy, Oil
15100	15100-37030	Pump Assy, Oil
15131	15131-0A040	Valve, Oil Pump Relief
15132	15132-46060	Spring, Oil Pump Relief Valve
15133	15133-28020	Plug, Oil Pump Relief Valve
15163	15163-28010	Gear, Oil Pump Drive Shaft
9017909004	90179-09004	NUT
9025311021	90253-11021	Pin, Ring
9155180616	91551-80616	BOLT FLANGE
9155180850	91551-80850	Bolt, Compressor, No.1

OEM	Part name	Category
15012-37010	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15100-37020	Pump Assy, Oil	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15100-37021	Pump Assy, Oil	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15100-37030	Pump Assy, Oil	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15131-0A040	Valve, Oil Pump Relief	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15132-46060	Spring, Oil Pump Relief Valve	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15133-28020	Plug, Oil Pump Relief Valve	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
15163-28010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
90179-09004	NUT	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
90253-11021	Pin, Ring	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
91551-80616	BOLT FLANGE	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
91551-80850	Bolt, Compressor, No.1	Engine Oil Pump ([10.2007 - ] (0710- )2ZR#)
