ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories
ZRE152 ×

← Back to categories

3,749 items

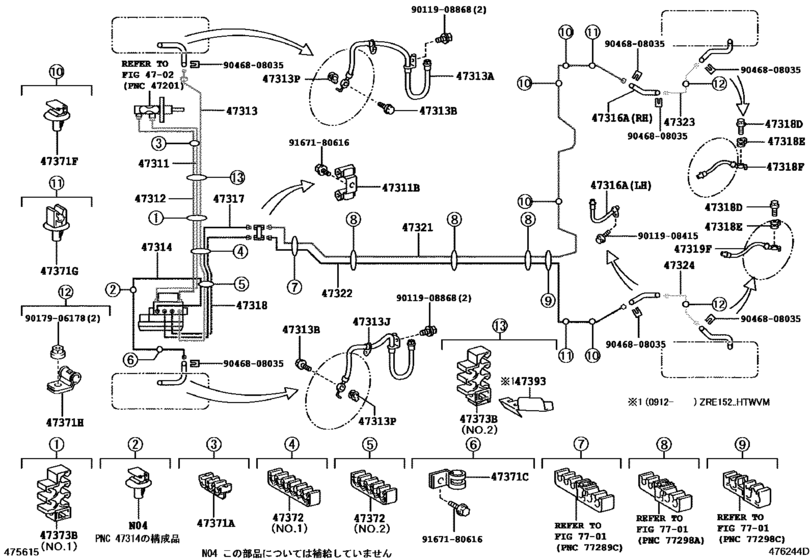

Brake Tube & Clamp ([10.2007 - ] (0710- )NZE151,ZRE152) 52
#OEMPart name
47311 47311-12A30 Tube, Front Brake, No.1
47311 47311-12A40 Tube, Front Brake, No.1
47311 90412-10260 Way, No.1(For Front Brake Tube)
47312 47312-12560 Tube, Front Brake, No.2
47312 47312-12570 Tube, Front Brake, No.2
47313 47313-12730 Tube, Front Brake, No.3
47313 47313-12740 Tube, Front Brake, No.3
47313 90947-02E33 Hose, Flexible, No.1(For Front)
47313 90947-02G30 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-02E34 Hose, Flexible, No.2(For Front)
47313 90947-02G31 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-12610 Tube, Front Brake, No.4
47314 47314-12620 Tube, Front Brake, No.4
47316 90947-02E31 Hose, Flexible(For Rear Brake Tube)
47316 90947-02E32 Hose, Flexible(For Rear Brake Tube)
47316 90947-02F85 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47316 90947-02F86 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47317 47317-12460 Tube, Front Brake, No.7
47317 47317-12470 Tube, Front Brake, No.7
47317 47317-12380 Tube, Front Brake, No.7
47318 47318-12600 Tube, Front Brake, No.8
47318 47318-12610 Tube, Front Brake, No.8
47318 90947-02E30 Hose, Flexible(For Rear Rh)
47318 90947-02F87 Hose, Flexible(For Rear Brake Tube)
47318 47318-12520 Tube, Front Brake, No.8
47321 47321-12290 Tube, Rear Brake, No.1
47321 47321-12430 Tube, Rear Brake, No.1
47322 47322-12450 Tube, Rear Brake, No.2
47322 47322-12590 Tube, Rear Brake, No.2
47323 47323-12230 Tube, Rear Brake, No.3
47323 47323-47050 Tube, Rear Brake, No.3
47324 47324-12190 Tube, Rear Brake, No.4
47324 47324-47050 Tube, Rear Brake, No.4
47371 90464-00868 Clamp, Brake Tube, No.1
47371 90461-10781 Clamp, Brake Tube, No.6
47371 90461-10843 Clamp, Tube
47371 90949-01D17 Clamp(For Clutch Master Cylinder Tube)
47371 90949-01D29 Clamp(For Clutch Tube)
47371 90461-10837 Clamp, Brake Tube, No.6
47372 90464-00890 Clamp, Brake Tube, No.1
47372 90464-00900 Clamp, Brake Tube, No.2
47373 90949-01D45 Clamp, Brake Tube, No.7
47373 90949-01D68 Clamp, Brake Tube, No.3
47393 47393-20030 Insulator, Brake Tube Heat
9011908415 90119-08415 New Genuine Part
9011908868 90119-08868 BOLT WWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9167180616 91671-80616 BOLT FLANGE
