ZRE152

Toyota COROLLA-RUMION · 2007 · 3,749 parts · 200 categories

3,749 items

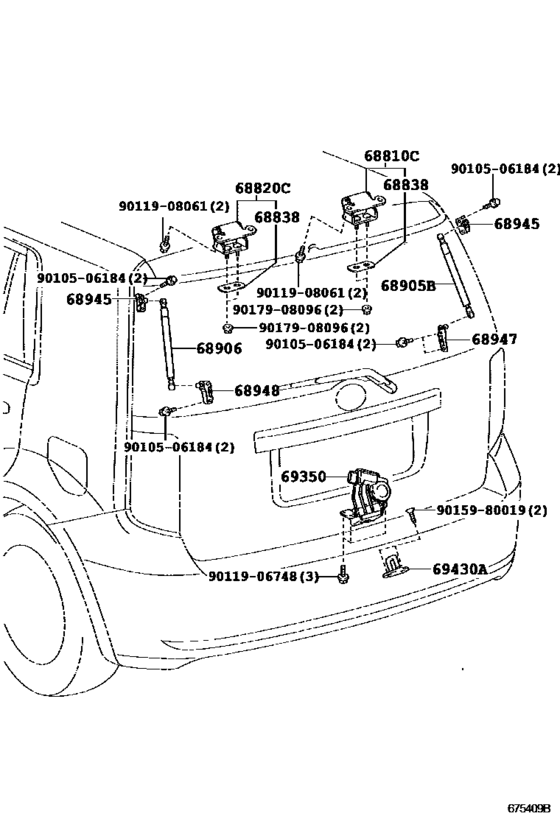

Back Door Lock & Handle ([10.2007 - ] (0710- )) 24

#	OEM	Part name
68810	68810-21050	Hinge Assy, Back Door, Upper
68810	68810-21051	Hinge Assy, Back Door, Rh
68838	68838-44020	Pad, Back Door Hinge, No.1
68905	68950-12520	Stay Sub-Assy, Back Door, Rh
68905	68950-12521	Stay Sub-Assy, Back Door, Rh
68905	68950-12580	Stay Sub-Assy, Back Door, Rh
68905	68950-12581	Stay Sub-Assy, Back Door, Rh
68906	68960-12340	Stay Sub-Assy, Back Door, Lh
68906	68960-12341	Stay Sub-Assy, Back Door, Lh
68906	68960-12360	Stay Sub-Assy, Back Door, Lh
68906	68960-12361	Stay Sub-Assy, Back Door, Lh
68945	68945-12060	Bracket, Back Door Damper Stay, Upper Rh
68947	68947-12060	Bracket, Back Door Damper Stay, Lower Rh
68948	68948-12060	Bracket, Back Door Damper Stay, Lower Lh
69350	69350-28150	Lock Assy, Back Door
69350	69350-28151	Lock Assy, Back Door
69430	69430-20160	Striker Assy, Back Door Lower Lock
69430	69431-12030	Striker Assy, Back Door Lower Lock
9010506184	90105-06184	BOLT WASHER BASED
9011906748	90119-06748	BOLT WWASHER
9011908061	90119-08061	BOLT
9015980019	90159-80019	New Genuine Part
9017908096	90179-08096	NUT
9017908096	90080-18061	New Genuine Part

OEM	Part name	Category
68810-21050	Hinge Assy, Back Door, Upper	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68810-21051	Hinge Assy, Back Door, Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68838-44020	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68945-12060	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68947-12060	Bracket, Back Door Damper Stay, Lower Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68948-12060	Bracket, Back Door Damper Stay, Lower Lh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68950-12520	Stay Sub-Assy, Back Door, Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68950-12521	Stay Sub-Assy, Back Door, Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68950-12580	Stay Sub-Assy, Back Door, Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68950-12581	Stay Sub-Assy, Back Door, Rh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68960-12340	Stay Sub-Assy, Back Door, Lh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68960-12341	Stay Sub-Assy, Back Door, Lh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68960-12360	Stay Sub-Assy, Back Door, Lh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
68960-12361	Stay Sub-Assy, Back Door, Lh	Back Door Lock & Handle ([10.2007 - ] (0710- ))
69350-28150	Lock Assy, Back Door	Back Door Lock & Handle ([10.2007 - ] (0710- ))
69350-28151	Lock Assy, Back Door	Back Door Lock & Handle ([10.2007 - ] (0710- ))
69430-20160	Striker Assy, Back Door Lower Lock	Back Door Lock & Handle ([10.2007 - ] (0710- ))
69431-12030	Striker Assy, Back Door Lower Lock	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90080-18061	New Genuine Part	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90105-06184	BOLT WASHER BASED	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90119-06748	BOLT WWASHER	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90119-08061	BOLT	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90159-80019	New Genuine Part	Back Door Lock & Handle ([10.2007 - ] (0710- ))
90179-08096	NUT	Back Door Lock & Handle ([10.2007 - ] (0710- ))
