Search › Model › ZRE144

ZRE144

Toyota COROLLA-AXIO-FIELDER · 2006 · 3,869 parts · 201 categories
ZRE144 ×

← Back to categories

3,869 items

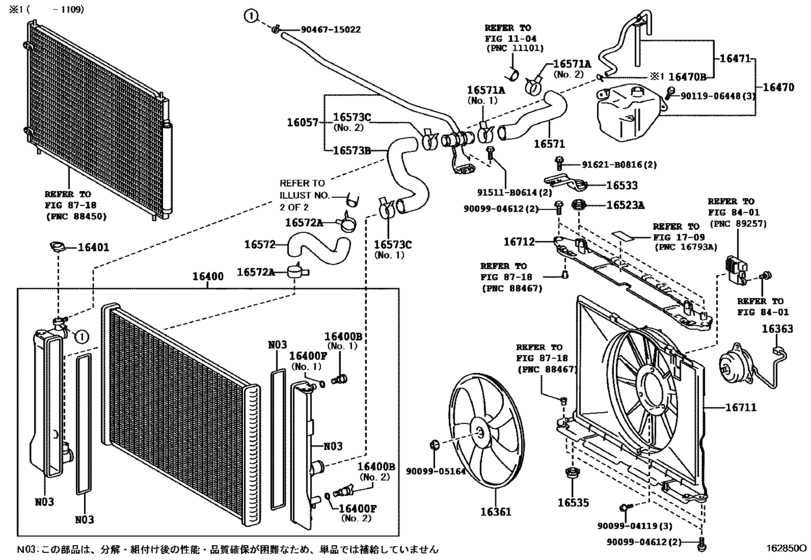

Radiator & Water Outlet ([09.2006 - ] (0609- )2ZR#) 61
#OEMPart name
16057 16057-21010 Hose Sub-Assy, Radiator
16261 16261-37051 Hose, Water By-Pass
16261 16261-37052 Hose, Water By-Pass
16261 96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16262 16262-37010 Hose, Water Inlet
16262 96136-42501 Clip(For Ventilation Hose)
16264 16264-37041 Hose, Water By-Pass, No.2
16264 16264-37042 Hose, Water By-Pass, No.2
16267 16267-37010 Hose, Water By-Pass, No.3
16268 16268-37021 Pipe, Water By-Pass, No.1
16282 16260-37010 Hose, Water By-Pass, No.5
16282 96134-41900 Clip Or Clamp(For Ventilation Hose)
16321 16321-37010 Inlet, Water
16323 16323-37020 Housing, Water Inlet
16323 16323-37021 Housing, Water Inlet
16325 16325-28010 Gasket, Water Inlet Housing, No.1
16326 16326-37010 Gasket, Water Inlet Housing, No.2
16331 90916-03144 Thermostat
16331 90916-03145 Thermostat
16361 16361-21110 Fan
16363 16363-22120 Motor, Cooling Fan
16381 16381-37010 Bar, Fan Belt Adjusting
16385 16385-37010 Slider, Fan Belt Adjusting
16400 16410-21180 Radiator Assy
16400 16417-21280 Cock Sub-Assy, Radiator Drain
16400 16417-28530 Plug, Radiator Drain Cock
16400 16418-20290 Packing(For Radiator Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16470 16470-21020 Tank Assy, Radiator Reserve
16470 90466-11001 Clamp Or Clip(For Radiator Reserve Tank Hose)
16471 16405-21060 Cap Sub-Assy, Reserve Tank
16523 16523-21050 Cushion, Radiator Support
16533 16533-21030 Support, Radiator, Upper
16535 16535-21091 Support, Radiator, Lower
16571 16571-37070 Hose, Radiator, Inlet
16571 96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-37060 Hose, Radiator, Outlet
16573 16573-21080 Hose, Radiator, No.3
16573 90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)
16581 16581-21030 Clamp, Hose(For Water Hose)
16581 16581-21060 Clamp, Hose(For Water Hose)
16711 16711-21140 Shroud, Fan
16712 16712-21010 Shroud, Fan, No.2
91511 91511-B0614 BOLT, FLANGE
91553 91553-F0830 New Genuine Part
91621 91621-B0816 BOLT WWASHER
8271512 82715-12B11 Bracket,wiring Harness Clamp
9011908 90119-08A53 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009904612 90099-04612 Bolt
9009905164 90099-05164 Nut
9010508433 90105-08433 BOLT FLANGE
9011906448 90119-06448 Screw(For Steering Column Tube)
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9046715022 90467-15022 Clip Or Clamp(For Ventilation Hose)
9155180825 91551-80825 Bolt(For Cylinder Head Set Sub)
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
