Search › Model › ZRE144
ZRE144

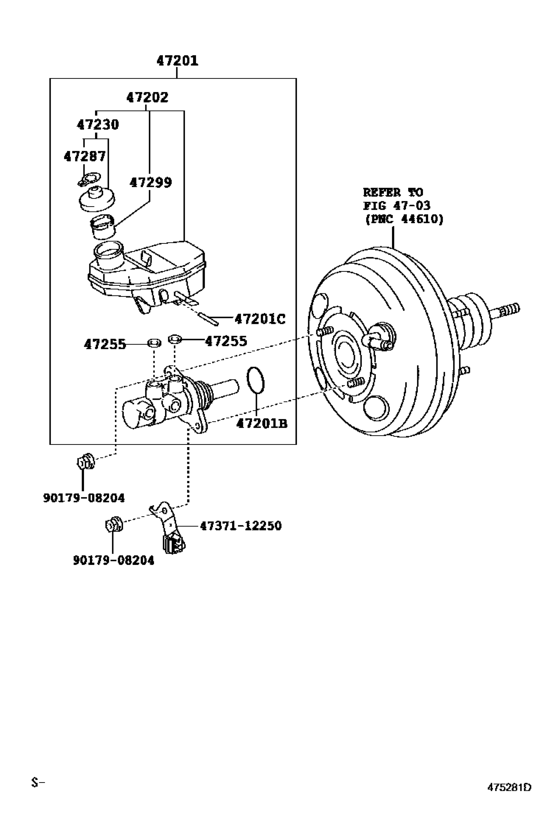

Brake Master Cylinder ([09.2006 - ] (0609- )) 11
| # | OEM | Part name |
|---|---|---|
| 47201 | 47201-12A80 | Cylinder Sub-Assy, Brake Master |
| 47201 | 90015-AH002 | Ring, O(For Brake Master Cylinder) |
| 47201 | 90029-15803 | Ring Pin, Brake Master Cylinder |
| 47202 | 47220-12210 | Reservoir Sub-Assy, Brake Master Cylinder |
| 47230 | 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | 90029-48001 | Grommet, Master Cylinder Reservoir |
| 47287 | 47287-20010 | Label, Brake Fluid Information |
| 47299 | 47299-20060 | Strainer, Brake Master Cylinder Reservoir |
| 4737112250 | 47371-12250 | Bracket, Connector |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 47201-12A80 | Cylinder Sub-Assy, Brake Master | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 47220-12210 | Reservoir Sub-Assy, Brake Master Cylinder | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 47287-20010 | Label, Brake Fluid Information | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 47299-20060 | Strainer, Brake Master Cylinder Reservoir | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 47371-12250 | Bracket, Connector | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 90015-AH002 | Ring, O(For Brake Master Cylinder) | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 90029-15803 | Ring Pin, Brake Master Cylinder | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 90029-48001 | Grommet, Master Cylinder Reservoir | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 90080-18070 | NUT, WWASHER | Brake Master Cylinder ([09.2006 - ] (0609- )) |
| 90179-08204 | Nut | Brake Master Cylinder ([09.2006 - ] (0609- )) |
