Search › Model › ZRE143
ZRE143

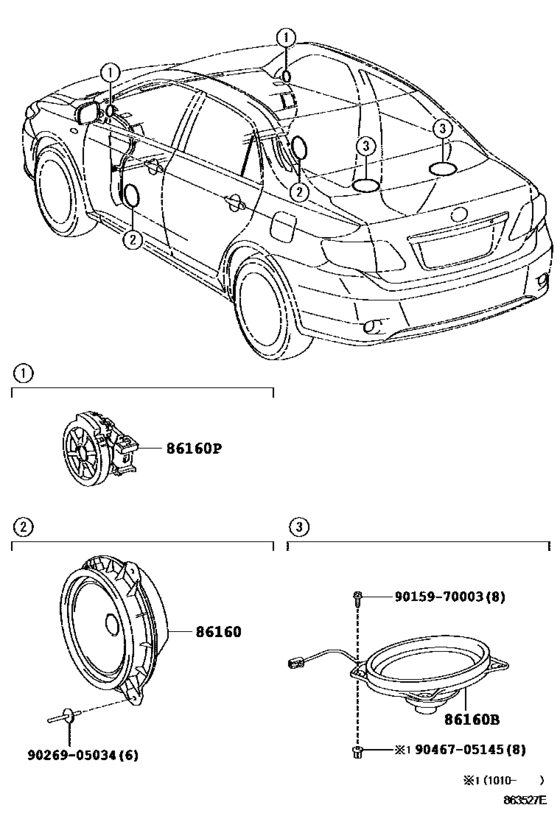

Speaker ([03.2008 - ] (0803- )) 9
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-02860 | Speaker Assy, Front No.1 |
| 86160 | 86160-0K220 | Speaker Assy, Front No.1 |
| 86160 | 86160-02720 | Speaker Assy, Rear |
| 86160 | 86160-02A30 | Speaker Assy, Rear |
| 86160 | 86160-02A80 | Speaker Assy, Front No.2 |
| 86160 | 86160-0D270 | Speaker Assy, Front No.2 |
| 9015970003 | 90159-70003 | Bolt, W/washer |
| 9026905034 | 90269-05034 | RIVET |
| 9046705145 | 90467-05145 | Retainer, Cowl Side Trim |
| OEM | Part name | Category |
|---|---|---|
| 86160-02720 | Speaker Assy, Rear | Speaker ([03.2008 - ] (0803- )) |
| 86160-02860 | Speaker Assy, Front No.1 | Speaker ([03.2008 - ] (0803- )) |
| 86160-02A30 | Speaker Assy, Rear | Speaker ([03.2008 - ] (0803- )) |
| 86160-02A80 | Speaker Assy, Front No.2 | Speaker ([03.2008 - ] (0803- )) |
| 86160-0D270 | Speaker Assy, Front No.2 | Speaker ([03.2008 - ] (0803- )) |
| 86160-0K220 | Speaker Assy, Front No.1 | Speaker ([03.2008 - ] (0803- )) |
| 90159-70003 | Bolt, W/washer | Speaker ([03.2008 - ] (0803- )) |
| 90269-05034 | RIVET | Speaker ([03.2008 - ] (0803- )) |
| 90467-05145 | Retainer, Cowl Side Trim | Speaker ([03.2008 - ] (0803- )) |
