Search › Model › ZRE143

ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

3,219 items

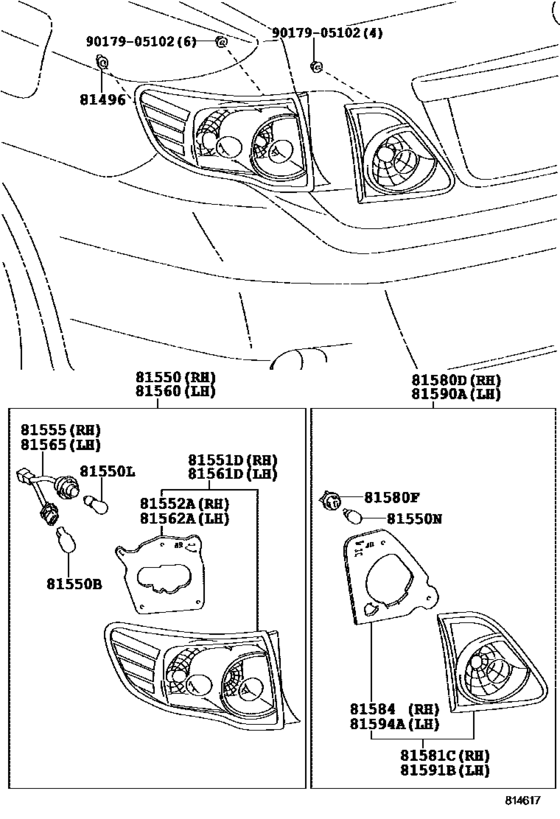

Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) 30

#	OEM	Part name
81496	81496-52020	Guide, Rear Combination Lamp
81550	81550-02350	Lamp Assy, Rear Combination, Rh
81550	81550-02630	Lamp Assy, Rear Combination, Rh
81550	90981-13044	Bulb(For Rear Combination Lamp) (12V 21/5W)
81550	90981-15021	Bulb (For Front Turn Signal Lamp)
81550	99132-11210	Bulb (12V 21W)
81550	90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)
81551	81551-02350	Lens & Body, Rear Combination Lamp, Rh
81551	81551-02630	Lens & Body, Rear Combination Lamp, Rh
81552	81552-02350	Gasket, Rear Combination Lamp, Rh
81552	81552-02630	Gasket, Rear Combination Lamp, Rh
81555	81555-02350	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81560	81560-02350	Lamp Assy, Rear Combination, Lh
81560	81560-02630	Lamp Assy, Rear Combination, Lh
81561	81561-02350	Lens & Body, Rear Combination Lamp, Lh
81561	81561-02630	Lens & Body, Rear Combination Lamp, Lh
81580	81580-02230	Lamp Assy, Rear, Rh
81580	81580-02380	Lamp Assy, Rear, Rh
81580	90075-99005	Socket And Wire, License Plate Lamp
81581	81581-02230	Lens And Body, Rear Lamp, Rh
81581	81581-02380	Lens And Body, Rear Lamp, Rh
81584	81552-02230	Packing, Rear Lamp Rh
81584	81584-02380	Packing, Rear Lamp Rh
81590	81590-02220	Lamp Assy, Rear, Lh
81590	81590-02380	Lamp Assy, Rear, Lh
81591	81591-02220	Lens And Body, Rear Lamp, Lh
81591	81591-02380	Lens And Body, Rear Lamp, Lh
81594	81562-02220	Gasket, Rear Lamp Lh
81594	81594-02380	Gasket, Rear Lamp Lh
9017905102	90179-05102	Nut

OEM	Part name	Category
81496-52020	Guide, Rear Combination Lamp	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81550-02350	Lamp Assy, Rear Combination, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81550-02630	Lamp Assy, Rear Combination, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81551-02350	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81551-02630	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81552-02230	Packing, Rear Lamp Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81552-02350	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81552-02630	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81555-02350	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81560-02350	Lamp Assy, Rear Combination, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81560-02630	Lamp Assy, Rear Combination, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81561-02350	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81561-02630	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81562-02220	Gasket, Rear Lamp Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81580-02230	Lamp Assy, Rear, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81580-02380	Lamp Assy, Rear, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81581-02230	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81581-02380	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81584-02380	Packing, Rear Lamp Rh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81590-02220	Lamp Assy, Rear, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81590-02380	Lamp Assy, Rear, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81591-02220	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81591-02380	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81594-02380	Gasket, Rear Lamp Lh	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90075-99005	Socket And Wire, License Plate Lamp	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90179-05102	Nut	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90981-13044	Bulb(For Rear Combination Lamp) (12V 21/5W)	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90981-15021	Bulb (For Front Turn Signal Lamp)	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
99132-11210	Bulb (12V 21W)	Rear Combination Lamp ([03.2010 - 03.2011] (0803-1003)SEG..HTWCF ; (0803- )ZZE142..SEG.. HTWC ; (0803- )ZZE14#..CE,GLI,XE GLI,XEI,XLI..HTWC ,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
