| 52015-02110 |
Arm Sub-Assy, Rear Bumper, Rh |

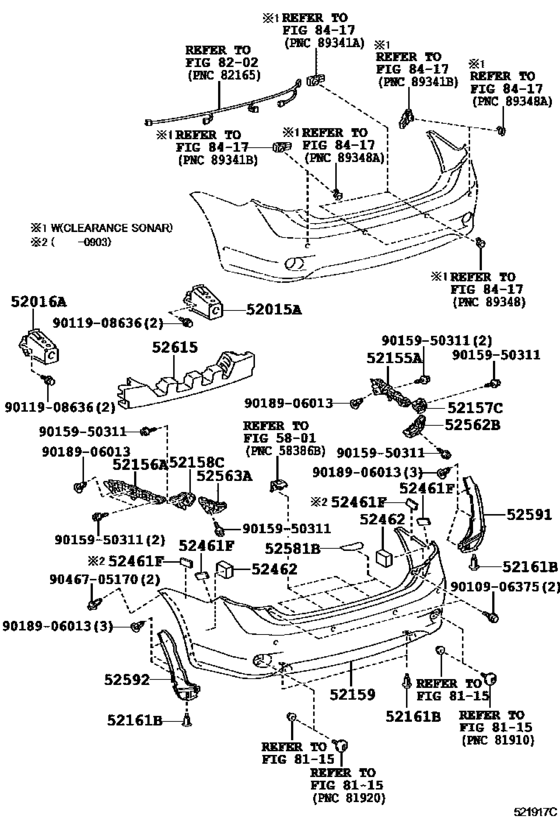

Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52155-02130 |
Support, Rear Bumper Side, Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52156-02120 |
Support, Rear Bumper Side, Lh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52157-02060 |
Support, Rear Bumper Side, No.2 Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52158-02050 |
Support, Rear Bumper Side, No.2 Lh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52159-01912 |
Cover, Rear Bumper |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52159-01914 |
Cover, Rear Bumper |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52159-02965 |
Cover, Rear Bumper |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52161-02020 |
Clip |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52161-0K040 |
Clip |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52161-16010 |
Clip |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52461-02060 |
Pad, Rear Bumper |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52462-02110 |
Pad, Rear Bumper, Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52462-12100 |
Pad, Rear Bumper, Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52562-02110 |
Retainer, Rear Bumper, Upper Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52562-02160 |
Retainer, Rear Bumper, Upper Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52563-02080 |
Retainer, Rear Bumper, Upper Lh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52563-02130 |
Retainer, Rear Bumper, Upper Lh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52581-13030 |
Protector, Rear Bumper |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52591-02200 |
Seal, Rear Bumper Side, Rh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52592-02190 |
Seal, Rear Bumper Side, Lh |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52615-02120 |
Absorber, Rear Bumper Energy |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 52615-12160 |
Absorber, Rear Bumper Energy |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90109-06375 |
BOLT |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90119-08636 |
BOLT |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90159-50311 |
SCREW |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90159-A0034 |
SCREW WWASHER |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90189-06013 |
CLIP |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
| 90467-05170 |
Clip, Rear Bumper Side |
Rear Bumper & Bumper Stay ([03.2010 - 03.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) |
