ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

3,219 items

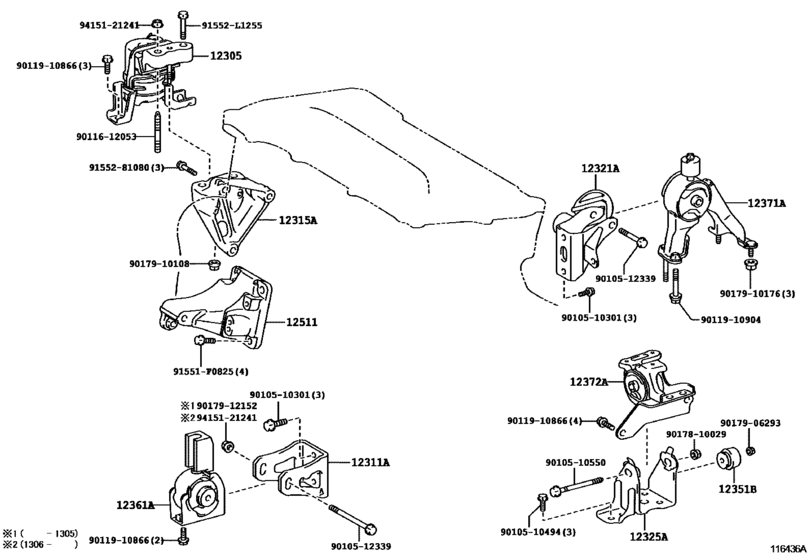

Mounting ([03.2010 - ] (1003- )3ZRFBE) 27

#	OEM	Part name
12305	12305-37081	Insulator Sub-Assy, Engine Mounting, Rh
12311	12311-0T150	Bracket, Engine Mounting, Front(For Transverse Engine)
12315	12315-37030	Bracket, Engine Mounting, Rh(For Transverse Engine)
12321	12321-0T180	Bracket, Engine Mounting, Rear(For Transverse Engine)
12325	12325-0T180	Bracket, Engine Mounting, Lh(For Transverse Engine)
12351	12351-74140	Damper, Engine Mounting
12361	12361-0T091	Insulator, Engine Mounting, Front(For Transverse Engine)
12361	12361-0T092	Insulator, Engine Mounting, Front(For Transverse Engine)
12371	12371-37110	Insulator, Engine Mounting, Rear
12372	12372-0T140	Insulator, Engine Mounting, Lh(For Transverse Engine)
12511	12511-37010	Bracket, Alternator, No.1
91551	91551-F0825	BOLT FLANGE
91552	91552-L1255	New Genuine Part
9010510301	90105-10301	BOLT WASHER BASED
9010510494	90105-10494	BOLT FLANGE
9010510550	90105-10550	BOLT FLANGE
9010512339	90105-12339	New Genuine Part
9011612053	90116-12053	BOLT STUD
9011910866	90119-10866	BOLT WWASHER
9011910904	90119-10904	BOLT WWASHER
9017810029	90178-10029	Nut(For Front Suspension Support)
9017906293	90179-06293	NUT
9017910108	90179-10108	NUT
9017910176	90179-10176	NUT
9017912152	90179-12152	NUT
9155281080	91552-81080	Bolt(For Alternator)
9415121241	94151-21241	Nut(For Front Stabilizer Link)

OEM	Part name	Category
12305-37081	Insulator Sub-Assy, Engine Mounting, Rh	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12311-0T150	Bracket, Engine Mounting, Front(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12315-37030	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12321-0T180	Bracket, Engine Mounting, Rear(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12325-0T180	Bracket, Engine Mounting, Lh(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12351-74140	Damper, Engine Mounting	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12361-0T091	Insulator, Engine Mounting, Front(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12361-0T092	Insulator, Engine Mounting, Front(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12371-37110	Insulator, Engine Mounting, Rear	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12372-0T140	Insulator, Engine Mounting, Lh(For Transverse Engine)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
12511-37010	Bracket, Alternator, No.1	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90105-10301	BOLT WASHER BASED	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90105-10494	BOLT FLANGE	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90105-10550	BOLT FLANGE	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90105-12339	New Genuine Part	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90116-12053	BOLT STUD	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90119-10866	BOLT WWASHER	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90119-10904	BOLT WWASHER	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90178-10029	Nut(For Front Suspension Support)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90179-06293	NUT	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90179-10108	NUT	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90179-10176	NUT	Mounting ([03.2010 - ] (1003- )3ZRFBE)
90179-12152	NUT	Mounting ([03.2010 - ] (1003- )3ZRFBE)
91551-F0825	BOLT FLANGE	Mounting ([03.2010 - ] (1003- )3ZRFBE)
91552-81080	Bolt(For Alternator)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
91552-L1255	New Genuine Part	Mounting ([03.2010 - ] (1003- )3ZRFBE)
94151-21241	Nut(For Front Stabilizer Link)	Mounting ([03.2010 - ] (1003- )3ZRFBE)
