Search › Model › ZRE143
ZRE143

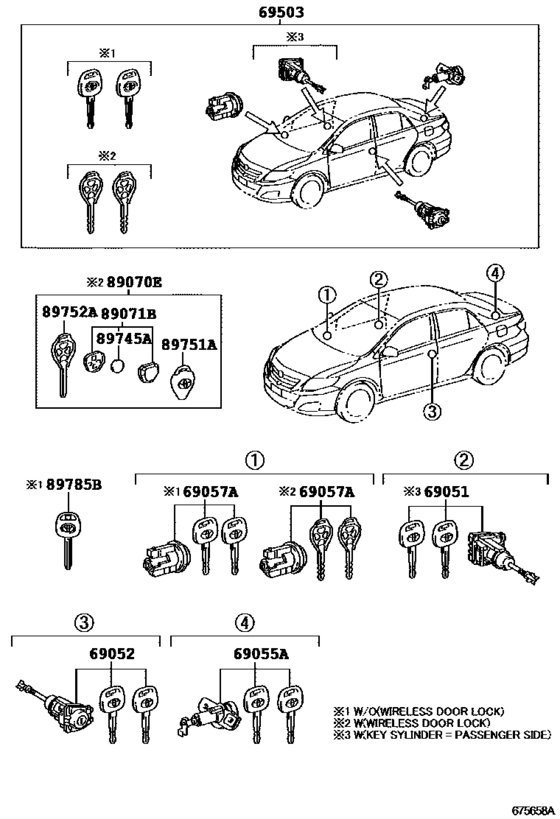

Lock Cylinder Set ([03.2008 - ] (0803- )) 10
| # | OEM | Part name |
|---|---|---|
| 69052 | 69052-02100 | Cylinder & Key Set, Door Lock, Lh |
| 69055 | 69055-02230 | Cylinder & Key Set, Luggage Compartment Lock |
| 69057 | 69057-02450 | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | 69005-02520 | Cylinder Set, Lock |
| 89070 | 89070-02390 | Transmitter Assy, Door Control |
| 89070 | 89070-02440 | Transmitter Assy, Door Control |
| 89071 | 89071-02090 | Module Set, Transmitter Sub-Assy, Door Control |
| 89745 | 89745-0H010 | Battery, Transmitter |
| 89751 | 89751-05010 | Cover, Transmitter Housing |
| 89752 | 89752-02150 | Case, Transmitter Housing |
| OEM | Part name | Category |
|---|---|---|
| 69005-02520 | Cylinder Set, Lock | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 69052-02100 | Cylinder & Key Set, Door Lock, Lh | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 69055-02230 | Cylinder & Key Set, Luggage Compartment Lock | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 69057-02450 | Cylinder & Key Set, Ignition Switch Lock | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89070-02390 | Transmitter Assy, Door Control | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89070-02440 | Transmitter Assy, Door Control | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89071-02090 | Module Set, Transmitter Sub-Assy, Door Control | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89745-0H010 | Battery, Transmitter | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89751-05010 | Cover, Transmitter Housing | Lock Cylinder Set ([03.2008 - ] (0803- )) |
| 89752-02150 | Case, Transmitter Housing | Lock Cylinder Set ([03.2008 - ] (0803- )) |
