ZRE143

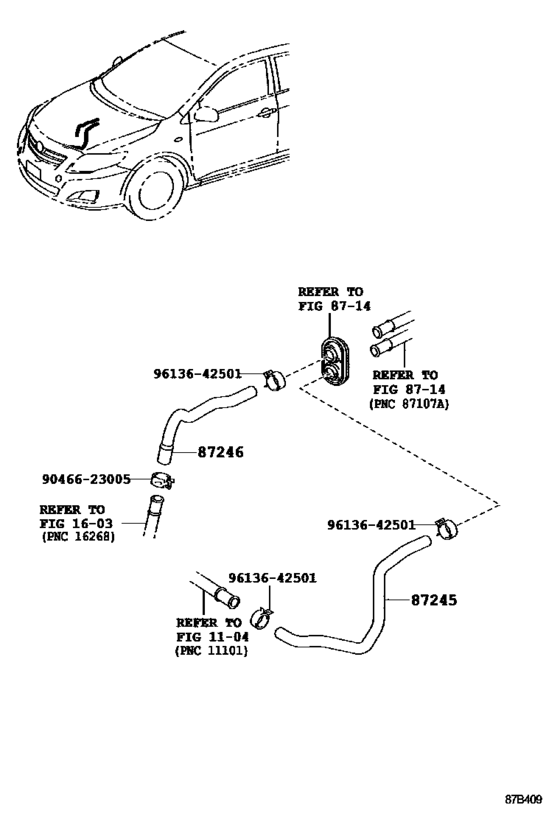

Heating & Air Conditioning - Water Piping ([03.2010 - ] (1003- )ZRE143) 4
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-02G20 | Hose, Heater Water, Inlet |
| 87246 | 87245-02G30 | Hose, Heater Water, Outlet |
| 9046623005 | 90466-23005 | Clamp Or Clip(For Intercooler Cooling Water Hose No.3) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87245-02G20 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([03.2010 - ] (1003- )ZRE143) |
| 87245-02G30 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([03.2010 - ] (1003- )ZRE143) |
| 90466-23005 | Clamp Or Clip(For Intercooler Cooling Water Hose No.3) | Heating & Air Conditioning - Water Piping ([03.2010 - ] (1003- )ZRE143) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([03.2010 - ] (1003- )ZRE143) |
