Search › Model › ZRE143

ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

3,219 items

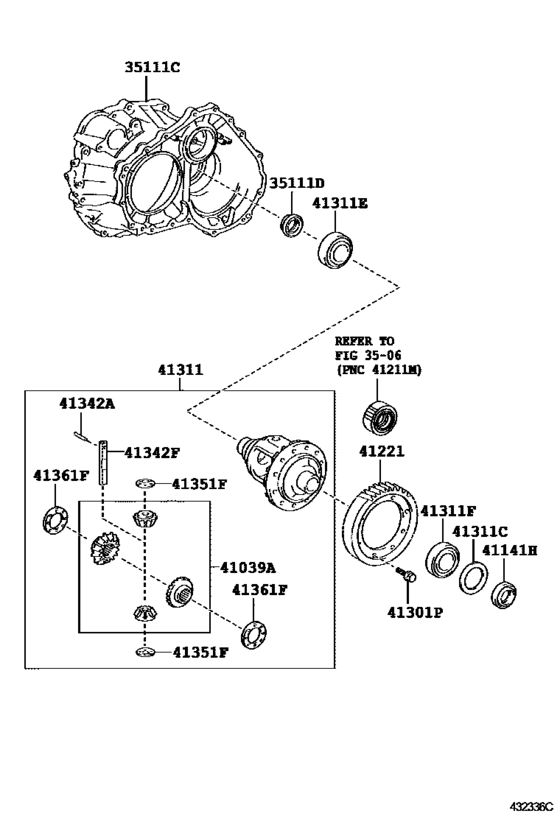

Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143) 36

#	OEM	Part name
35111	35105-68010	Housing, Transaxle
35111	90311-40031	Oil Seal, Front Drive Shaft, Rh
41039	41039-28020	Gear Kit, Differential
41141	90311-50036	Oil Seal, Front Drive Shaft, Lh
41141	90311-50048	Oil Seal, Front Drive Shaft, Lh
41221	41221-28110	Gear, Front Differential Ring
41301	90105-12303	Bolt (For Front Differential Ring Gear Set)
41311	41301-28090	Case, Front Differential
41311	90564-68006	Shim (For Front Differential Case Rear)
41311	90564-68007	Shim (For Front Differential Case Rear)
41311	90564-68008	Shim (For Front Differential Case Rear)
41311	90564-68009	Shim (For Front Differential Case Rear)
41311	90564-68010	Shim (For Front Differential Case Rear)
41311	90564-68011	Shim (For Front Differential Case Rear)
41311	90564-68012	Shim (For Front Differential Case Rear)
41311	90564-68013	Shim (For Front Differential Case Rear)
41311	90564-68014	Shim (For Front Differential Case Rear)
41311	90564-68015	Shim (For Front Differential Case Rear)
41311	90564-68016	Shim (For Front Differential Case Rear)
41311	90564-68017	Shim (For Front Differential Case Rear)
41311	90564-68018	Shim (For Front Differential Case Rear)
41311	90564-68019	Shim (For Front Differential Case Rear)
41311	90564-68020	Shim (For Front Differential Case Rear)
41311	90564-68021	Shim (For Front Differential Case Rear)
41311	90564-68022	Shim (For Front Differential Case Rear)
41311	90564-68023	Shim (For Front Differential Case Rear)
41311	90564-68024	Shim (For Front Differential Case Rear)
41311	90366-50075	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-50078	Bearing, Tapered Roller (For Front Differential Case Rear)
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-28030	Shaft, Front Differential Pinion, No.1
41351	41351-28010	Washer, Front Differential Pinion Thrust
41361	41361-28230	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28240	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28250	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28260	Washer, Front Differential Side Gear Thrust, No.1

OEM	Part name	Category
35105-68010	Housing, Transaxle	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41039-28020	Gear Kit, Differential	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41221-28110	Gear, Front Differential Ring	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41301-28090	Case, Front Differential	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41342-28030	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41351-28010	Washer, Front Differential Pinion Thrust	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41361-28230	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41361-28240	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41361-28250	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
41361-28260	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90105-12303	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90311-40031	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90311-50036	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90311-50048	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90366-50075	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90366-50078	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68011	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68015	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68019	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68020	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68021	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68022	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68023	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)
90564-68024	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2010 - ] U241E (1003- )ZRE143)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 194
Collected: 2026-08-02
