Search › Model › ZRE143
ZRE143

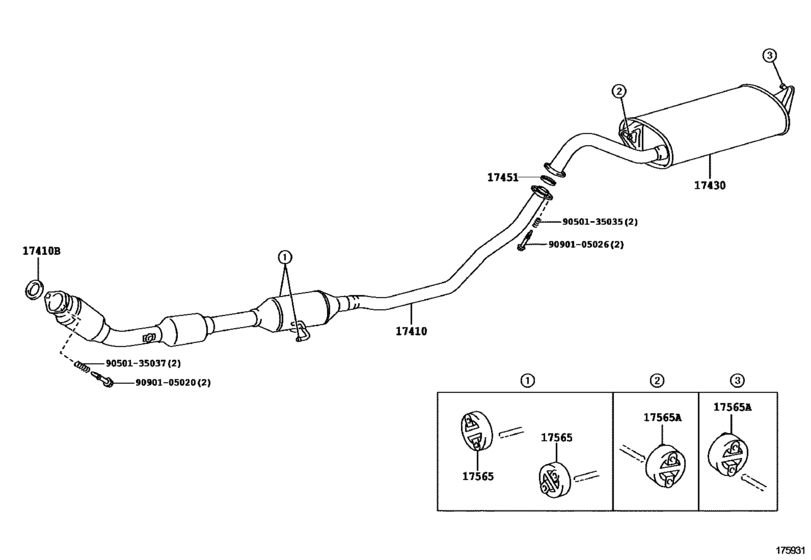

Exhaust Pipe ([03.2008 - ] (0803- )) 12
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-0T180 | Pipe Assy, Exhaust, Front |
| 17410 | 17451-28070 | Gasket, Exhaust Pipe |
| 17410 | 17451-28041 | Gasket, Exhaust Pipe |
| 17430 | 17430-0T130 | Pipe Assy, Exhaust, Tail |
| 17451 | 17451-28031 | Gasket, Exhaust Pipe, Center |
| 17451 | 17451-28032 | Gasket, Exhaust Pipe, Center |
| 17565 | 17565-22030 | Support, Exhaust Pipe, No.1 |
| 17565 | 17565-22040 | Support, Exhaust Pipe, No.1 |
| 9050135035 | 90501-35035 | Spring, Exhaust Pipe |
| 9050135037 | 90501-35037 | Spring, Exhaust Pipe |
| 9090105020 | 90901-05020 | Bolt Or Ring, Exhaust Pipe Front (For Front) |
| 9090105026 | 90901-05026 | Bolt, Exhaust Pipe Support |
| OEM | Part name | Category |
|---|---|---|
| 17410-0T180 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17430-0T130 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17451-28031 | Gasket, Exhaust Pipe, Center | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17451-28032 | Gasket, Exhaust Pipe, Center | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17451-28041 | Gasket, Exhaust Pipe | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17451-28070 | Gasket, Exhaust Pipe | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17565-22030 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 17565-22040 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 90501-35035 | Spring, Exhaust Pipe | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 90501-35037 | Spring, Exhaust Pipe | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 90901-05020 | Bolt Or Ring, Exhaust Pipe Front (For Front) | Exhaust Pipe ([03.2008 - ] (0803- )) |
| 90901-05026 | Bolt, Exhaust Pipe Support | Exhaust Pipe ([03.2008 - ] (0803- )) |
