Search › Model › ZRE143

ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

3,219 items

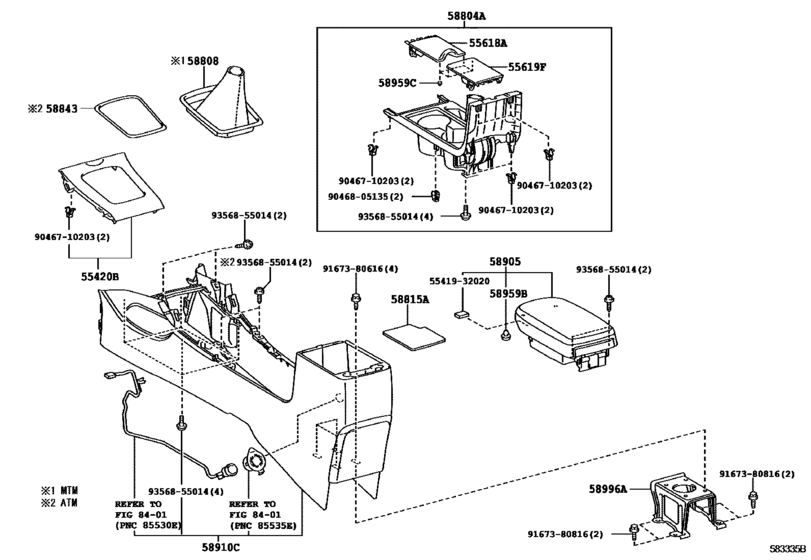

Console Box & Bracket ([03.2008 - ] (0803- )) 32

#	OEM	Part name
55420	55420-02530-B0	Panel Assy, Instrument Cluster Finish, Center No.1
55420	55420-02730	Panel Assy, Instrument Cluster Finish, Center No.1
55420	55420-02480	Panel Assy, Instrument Cluster Finish, Center No.1
55420	55420-02630	Panel Assy, Instrument Cluster Finish, Center No.1
55618	55618-02150-B0	Holder, Console Box Cup
55618	55618-02150-B1	Holder, Console Box Cup
55618	55618-02150-E0	Holder, Console Box Cup
55619	55619-02160-B0	Holder, Console Box Cup, No.2
55619	55619-02160-B1	Holder, Console Box Cup, No.2
55619	55619-02160-E0	Holder, Console Box Cup, No.2
58804	58804-02130-B1	Panel Sub-Assy, Console, Upper
58804	58804-02170-B0	Panel Sub-Assy, Console, Upper
58804	58804-02130-E0	Panel Sub-Assy, Console, Upper
58804	58804-02130-E1	Panel Sub-Assy, Console, Upper
58815	58815-02180	Carpet, Console Box
58843	58843-02170	Bezel, Shifting Hole
58843	58843-12130	Bezel, Shifting Hole
58905	58905-02590-B0	Door Sub-Assy, Console Compartment
58905	58905-02590-B1	Door Sub-Assy, Console Compartment
58905	58905-02590-E0	Door Sub-Assy, Console Compartment
58910	58910-02170-B0	Box Assy, Console, Rear
58910	58910-02170-B1	Box Assy, Console, Rear
58910	58910-02170-E0	Box Assy, Console, Rear
58959	58959-60060	Cushion, Instrument Panel
58959	58959-12040	Cushion, Console Compartment Door - REAR CONSOLE BOX
58996	58996-02110	Bracket, Console Box Mounting, No.2
5541932020	55419-32020	Cushion, Instrument Cluster Finish Panel
9046710203	90467-10203	Direct
9046805135	90468-05135	Clip, Instrument Panel
9167380616	91673-80616	Bolt, W/washer
9167380816	91673-80816	Bolt (For Transmission Control Cable Bracket)
9356855014	93568-55014	Screw

OEM	Part name	Category
55419-32020	Cushion, Instrument Cluster Finish Panel	Console Box & Bracket ([03.2008 - ] (0803- ))
55420-02480	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([03.2008 - ] (0803- ))
55420-02530-B0	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([03.2008 - ] (0803- ))
55420-02630	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([03.2008 - ] (0803- ))
55420-02730	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([03.2008 - ] (0803- ))
55618-02150-B0	Holder, Console Box Cup	Console Box & Bracket ([03.2008 - ] (0803- ))
55618-02150-B1	Holder, Console Box Cup	Console Box & Bracket ([03.2008 - ] (0803- ))
55618-02150-E0	Holder, Console Box Cup	Console Box & Bracket ([03.2008 - ] (0803- ))
55619-02160-B0	Holder, Console Box Cup, No.2	Console Box & Bracket ([03.2008 - ] (0803- ))
55619-02160-B1	Holder, Console Box Cup, No.2	Console Box & Bracket ([03.2008 - ] (0803- ))
55619-02160-E0	Holder, Console Box Cup, No.2	Console Box & Bracket ([03.2008 - ] (0803- ))
58804-02130-B1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2008 - ] (0803- ))
58804-02130-E0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2008 - ] (0803- ))
58804-02130-E1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2008 - ] (0803- ))
58804-02170-B0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2008 - ] (0803- ))
58815-02180	Carpet, Console Box	Console Box & Bracket ([03.2008 - ] (0803- ))
58843-02170	Bezel, Shifting Hole	Console Box & Bracket ([03.2008 - ] (0803- ))
58843-12130	Bezel, Shifting Hole	Console Box & Bracket ([03.2008 - ] (0803- ))
58905-02590-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([03.2008 - ] (0803- ))
58905-02590-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([03.2008 - ] (0803- ))
58905-02590-E0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([03.2008 - ] (0803- ))
58910-02170-B0	Box Assy, Console, Rear	Console Box & Bracket ([03.2008 - ] (0803- ))
58910-02170-B1	Box Assy, Console, Rear	Console Box & Bracket ([03.2008 - ] (0803- ))
58910-02170-E0	Box Assy, Console, Rear	Console Box & Bracket ([03.2008 - ] (0803- ))
58959-12040	Cushion, Console Compartment Door - REAR CONSOLE BOX	Console Box & Bracket ([03.2008 - ] (0803- ))
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([03.2008 - ] (0803- ))
58996-02110	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([03.2008 - ] (0803- ))
90467-10203	Direct	Console Box & Bracket ([03.2008 - ] (0803- ))
90468-05135	Clip, Instrument Panel	Console Box & Bracket ([03.2008 - ] (0803- ))
91673-80616	Bolt, W/washer	Console Box & Bracket ([03.2008 - ] (0803- ))
91673-80816	Bolt (For Transmission Control Cable Bracket)	Console Box & Bracket ([03.2008 - ] (0803- ))
93568-55014	Screw	Console Box & Bracket ([03.2008 - ] (0803- ))
