Search › Model › ZRE143

ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

3,219 items

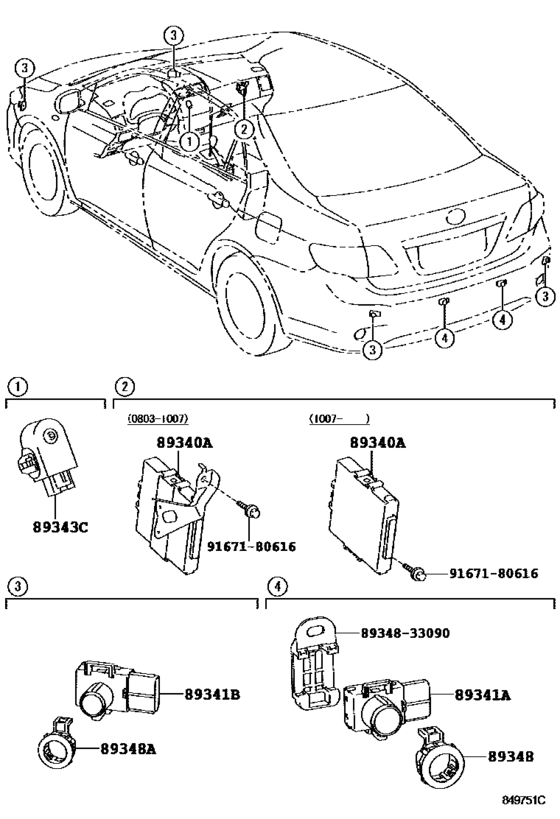

Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG) 31

#	OEM	Part name
89340	89340-12060	Computer Assy, Clearance Warning
89340	89340-12070	Computer Assy, Clearance Warning
89341	89341-33140-B5	Sensor, Ultrasonic, No.2
89341	89341-33140-B9	Sensor, Ultrasonic, No.1
89341	89341-33140-C1	Sensor, Ultrasonic, No.1
89341	89341-33140-E6	Sensor, Ultrasonic, No.1
89341	89341-33140-E1	Sensor, Ultrasonic, No.2
89341	89341-33140-H0	Sensor, Ultrasonic, No.1
89341	89341-33140-J2	Sensor, Ultrasonic, No.1
89341	89341-33160-B5	Sensor, Ultrasonic, No.1
89341	89341-33160-B9	Sensor, Ultrasonic, No.2
89341	89341-33160-C1	Sensor, Ultrasonic, No.2
89341	89341-33160-E6	Sensor, Ultrasonic, No.2
89341	89341-33160-H0	Sensor, Ultrasonic, No.2
89341	89341-33160-J2	Sensor, Ultrasonic, No.1 - ULTRASONIC, NO.2
89343	89343-30010	Buzzer, Clearance Warning
89348	89348-33040-B5	Retainer, Ultrasonic Sensor, No.2
89348	89348-33040-B9	Retainer, Ultrasonic Sensor, No.1
89348	89348-33040-C1	Retainer, Ultrasonic Sensor, No.1
89348	89348-33040-E6	Retainer, Ultrasonic Sensor, No.1
89348	89348-33040-E1	Retainer, Ultrasonic Sensor, No.2
89348	89348-33040-H0	Retainer, Ultrasonic Sensor, No.1
89348	89348-33040-J2	Retainer, Ultrasonic Sensor, No.1
89348	89348-33060-B5	Retainer, Ultrasonic Sensor, No.1
89348	89348-33060-C2	Retainer, Ultrasonic Sensor, No.2
89348	89348-33060-E8	Retainer, Ultrasonic Sensor, No.2
89348	89348-33060-H0	Retainer, Ultrasonic Sensor, No.2 - ULTRASONIC SENSOR, NO.1
89348	89348-33060-J2	Retainer, Ultrasonic Sensor, No.1 - ULTRASONIC SENSOR, NO.2
89348	89348-33060-P1	Retainer, Ultrasonic Sensor, No.2
8934833090	89348-33090	Clip, Ultrasonic Sensor
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
89340-12060	Computer Assy, Clearance Warning	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89340-12070	Computer Assy, Clearance Warning	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-B5	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-B9	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-C1	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-E1	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-E6	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-H0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33140-J2	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-B5	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-B9	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-C1	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-E6	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-H0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89341-33160-J2	Sensor, Ultrasonic, No.1 - ULTRASONIC, NO.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89343-30010	Buzzer, Clearance Warning	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-B5	Retainer, Ultrasonic Sensor, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-B9	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-C1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-E1	Retainer, Ultrasonic Sensor, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-E6	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-H0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33040-J2	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-B5	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-C2	Retainer, Ultrasonic Sensor, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-E8	Retainer, Ultrasonic Sensor, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-H0	Retainer, Ultrasonic Sensor, No.2 - ULTRASONIC SENSOR, NO.1	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-J2	Retainer, Ultrasonic Sensor, No.1 - ULTRASONIC SENSOR, NO.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33060-P1	Retainer, Ultrasonic Sensor, No.2	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
89348-33090	Clip, Ultrasonic Sensor	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
91671-80616	BOLT FLANGE	Clearance & Back Sonar ([03.2008 - ] (0803- )ZRE143,ZZE142..ALT,SEG)
