ZRE143

Toyota COROLLA · 2010 · 3,219 parts · 194 categories

← Back to categories

3,219 items

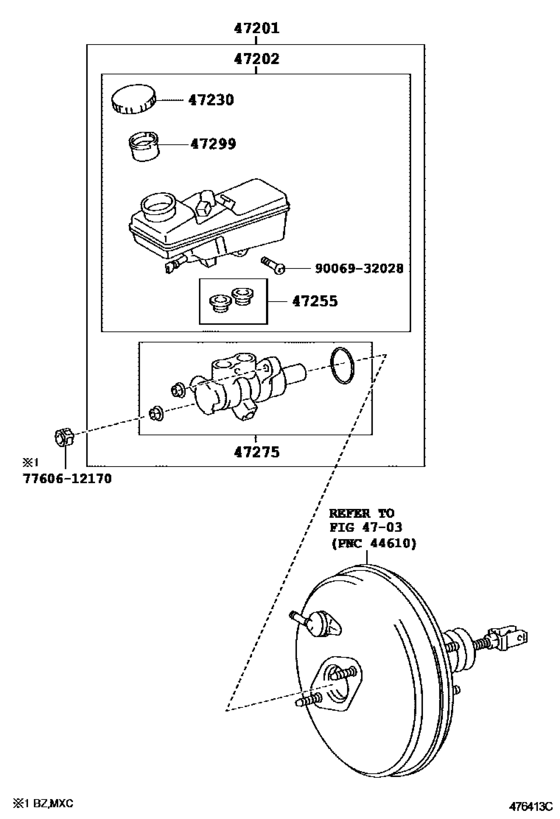

Brake Master Cylinder ([03.2008 - ] (0803- )) 9

#	OEM	Part name
47201	47201-09331	Cylinder Sub-Assy, Brake Master
47201	47201-09680	Cylinder Sub-Assy, Brake Master
47202	47220-09110	Reservoir Sub-Assy, Brake Master Cylinder
47230	47230-02250	Cap Assy, Brake Master Cylinder Reservoir Filler
47255	47255-09040	Grommet, Master Cylinder Reservoir
47275	47275-09010	Gasket, Brake Master Cylinder
47299	47299-02160	Strainer, Brake Master Cylinder Reservoir
7760612170	77606-12170	Protector Sub-assy, Fuel Tank, No.1
9006932028	90069-32028	New Genuine Part

OEM	Part name	Category
47201-09331	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([03.2008 - ] (0803- ))
47201-09680	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([03.2008 - ] (0803- ))
47220-09110	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([03.2008 - ] (0803- ))
47230-02250	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([03.2008 - ] (0803- ))
47255-09040	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([03.2008 - ] (0803- ))
47275-09010	Gasket, Brake Master Cylinder	Brake Master Cylinder ([03.2008 - ] (0803- ))
47299-02160	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([03.2008 - ] (0803- ))
77606-12170	Protector Sub-assy, Fuel Tank, No.1	Brake Master Cylinder ([03.2008 - ] (0803- ))
90069-32028	New Genuine Part	Brake Master Cylinder ([03.2008 - ] (0803- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 194
Collected: 2026-08-02
