Search › Model › ZRE143
ZRE143

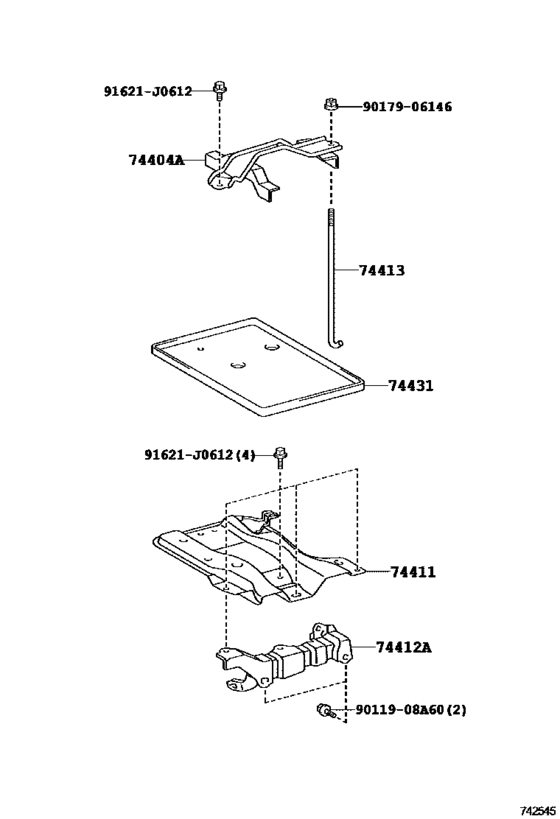

Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) 8
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-02220 | Clamp Sub-Assy, Battery |
| 74411 | 74401-02060 | Carrier, Battery |
| 74412 | 74410-02100 | Carrier, Battery, No.2 |
| 74413 | 74451-02090 | Bolt, Battery Clamp |
| 74431 | 74431-02051 | Tray, Battery |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 9011908 | 90119-08A60 | New Genuine Part |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74401-02060 | Carrier, Battery | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 74404-02220 | Clamp Sub-Assy, Battery | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 74410-02100 | Carrier, Battery, No.2 | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 74431-02051 | Tray, Battery | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 74451-02090 | Bolt, Battery Clamp | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 90119-08A60 | New Genuine Part | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 90179-06146 | Nut | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
| 91621-J0612 | BOLT W-WASHER | Battery Carrier ([03.2008 - ] (0803- )HTWC,HTWCF) |
