ZRE141

Toyota COROLLA · 2010 · 3,192 parts · 169 categories

← Back to categories

3,192 items

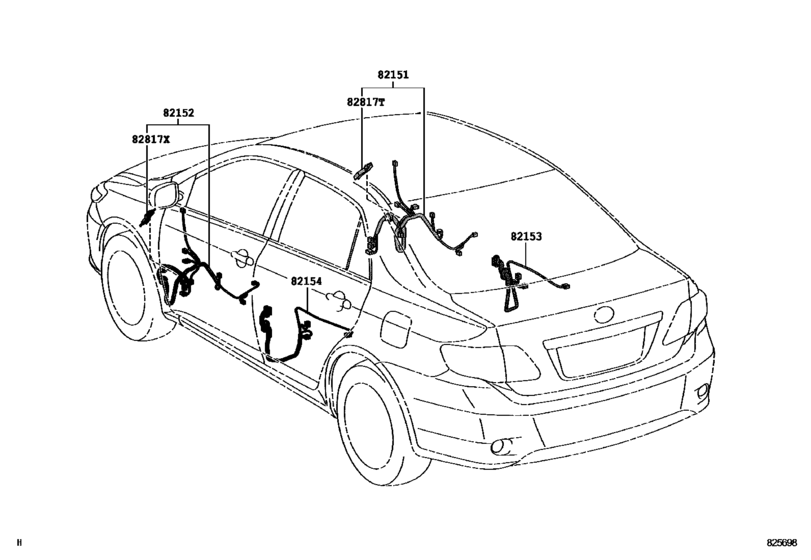

Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED) 12

#	OEM	Part name
82151	82151-12K10	Wire, Front Door, Rh
82151	82151-12K20	Wire, Front Door, Rh
82151	82151-12J50	Wire, Front Door, Rh
82151	82151-12J60	Wire, Front Door, Rh
82152	82152-12K10	Wire, Front Door, Lh
82152	82152-12K20	Wire, Front Door, Lh
82152	82152-12J50	Wire, Front Door, Lh
82152	82152-12J60	Wire, Front Door, Lh
82153	82153-12880	Wire, Rear Door, No.1
82154	82154-12830	Wire, Rear Door, No.2
82817	82817-12F30	Protector, Wiring Harness, No.15 - WIRING HARNESS, NO.10
82817	82817-12F40	Protector, Wiring Harness, N0.17 - WIRING HARNESS, NO.12

OEM	Part name	Category
82151-12J50	Wire, Front Door, Rh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82151-12J60	Wire, Front Door, Rh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82151-12K10	Wire, Front Door, Rh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82151-12K20	Wire, Front Door, Rh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82152-12J50	Wire, Front Door, Lh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82152-12J60	Wire, Front Door, Lh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82152-12K10	Wire, Front Door, Lh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82152-12K20	Wire, Front Door, Lh	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82153-12880	Wire, Rear Door, No.1	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82154-12830	Wire, Rear Door, No.2	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82817-12F30	Protector, Wiring Harness, No.15 - WIRING HARNESS, NO.10	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)
82817-12F40	Protector, Wiring Harness, N0.17 - WIRING HARNESS, NO.12	Wiring & Clamp ([08.2007 - ] DOOR (0708- )SED)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 169
Collected: 2026-08-02
