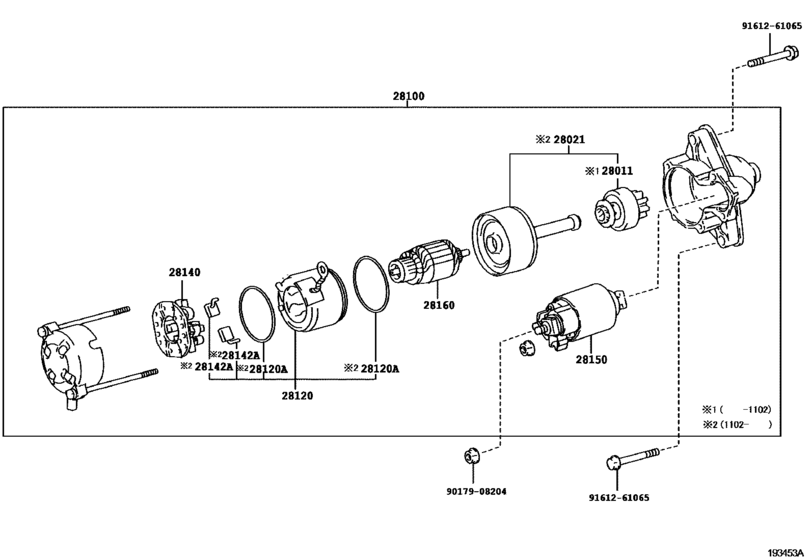

| 28011-70020 |
Clutch Sub-Assy, Starter |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28021-70020 |
Clutch Sub-Assy, Starter Center Bearing |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28100-37021 |
Starter Assy |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28120-47120 |
Yoke Assy, Starter |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28140-70020 |
Holder Assy, Starter Brush |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28142-70020 |
Brush, Starter |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28150-22100 |
Switch Assy, Magnet Starter |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 28160-70021 |
Armature Assy, Starter |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 90080-18070 |
NUT, WWASHER |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 90099-14092 |
Ring, O(For Starter Yoke) |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 90119-A0104 |
Bolt with Washer |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 90179-08204 |
Nut |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
| 91612-61065 |
Bolt(For Transaxle & Engine Setting) |
Starter ([07.2010 - ] 12V 0.8KW (1007- )1ZRFE,2ZRFE) |
