ZRE141

Toyota COROLLA · 2010 · 3,192 parts · 169 categories

3,192 items

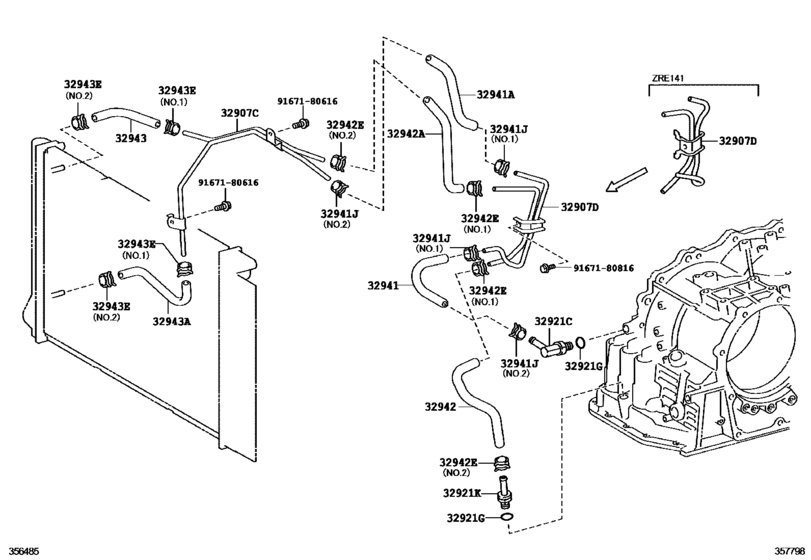

Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC) 21

#	OEM	Part name
32907	32907-12160	Tube Sub-Assy, Oil Cooler W/o Hose, No.1
32907	32907-12180	Tube Sub-Assy, Oil Cooler W/o Hose, No.1
32907	32907-12120	Tube Sub-Assy, Oil Cooler W/o Hose, No.2
32921	90404-13005	Union(For Oil Cooler Tube)
32921	90301-10018	Ring, O(For Oil Cooler Tube Union)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90404-13007	Union(For Oil Cooler Tube) - NO.2(FOR OIL COOLER TUBE)
32941	32943-12200	Hose, Oil Cooler Inlet, No.1
32941	90445-15020	Hose(For Oil Cooler Inlet)
32941	96135-51300	Clamp, Hose
32941	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
32942	32943-12210	Hose, Oil Cooler Outlet, No.1
32942	90445-15054	Hose(For Oil Cooler Inlet)
32943	32943-12261	Hose, Transmission Oil Cooler, No.1
32943	32943-12300	Hose, Transmission Oil Cooler, No.1
32943	32943-12310	Hose, Transmission Oil Cooler, No.2
32943	32943-12401	Hose, Transmission Oil Cooler, No.2
32943	90466-16004	Clip(For Ventilation Hose No.2)
32943	90467-16022	Clip(For Water Inlet Hose)
9167180616	91671-80616	BOLT FLANGE
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
32907-12120	Tube Sub-Assy, Oil Cooler W/o Hose, No.2	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32907-12160	Tube Sub-Assy, Oil Cooler W/o Hose, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32907-12180	Tube Sub-Assy, Oil Cooler W/o Hose, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12200	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12210	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12261	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12300	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12310	Hose, Transmission Oil Cooler, No.2	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
32943-12401	Hose, Transmission Oil Cooler, No.2	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90301-10018	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90404-13005	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90404-13007	Union(For Oil Cooler Tube) - NO.2(FOR OIL COOLER TUBE)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90445-15020	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90445-15054	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
91671-80616	BOLT FLANGE	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Oil Cooler & Tube (Atm) ([07.2010 - ] U340E,U341E (1007- )ZRE14#..4FC)
