ZRE141

Toyota COROLLA · 2010 · 3,192 parts · 169 categories

← Back to categories

3,192 items

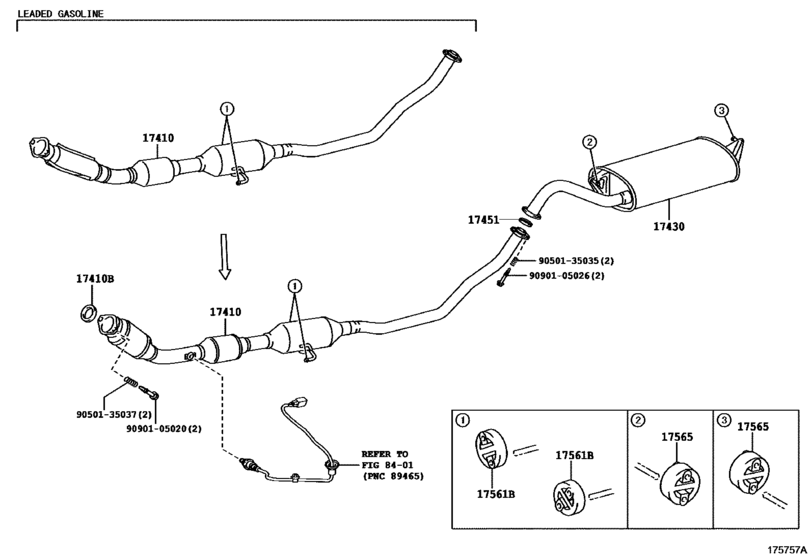

Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE) 12

#	OEM	Part name
17410	17410-37410	Pipe Assy, Exhaust, Front
17410	17451-28040	Gasket, Exhaust Pipe
17410	17451-28041	Gasket, Exhaust Pipe
17430	17430-21730	Pipe Assy, Exhaust, Tail
17451	17451-23041	Gasket, Exhaust Pipe
17451	17451-23042	Gasket, Exhaust Pipe, Center
17561	17565-22030	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support

OEM	Part name	Category
17410-37410	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17430-21730	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17451-23041	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([08.2007 - ] (0708- )1Z#,2ZRFE,3ZZFE)
