Search › Model › ZRE141

ZRE141

Toyota COROLLA · 2010 · 3,192 parts · 169 categories

3,192 items

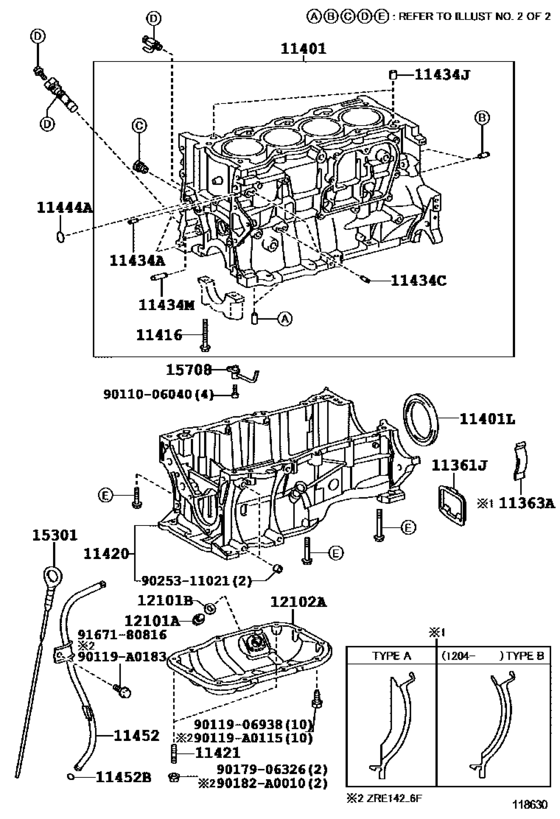

Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE) 45

#	OEM	Part name
11361	11361-21011	Cover, Flywheel Housing Under
11363	11363-21010	Cover, Flywheel Housing Side
11363	11363-33010	Cover, Flywheel Housing Side
11401	11410-39047	Block Sub-Assy, Cylinder
11401	11410-39235	Block Sub-Assy, Cylinder
11401	11410-39048	Block Sub-Assy, Cylinder
11401	90311-76002	Seal, Engine Rear Oil
11401	90311-78002	Seal, Engine Rear Oil
11401	90919-05070	Sensor, Crank Position
11416	90910-02163	Bolt(For Crankshaft Bearing Cap Set)
11420	11420-37010	Crankcase Assy, Stiffening
11421	90126-06028	Bolt, Stud(For Oil Pan)
11432	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11432	90345-53006	Plug, W/head Taper Screw, No.1
11434	90250-04097	Pin, Straight(For Camshaft Housing Rh)
11434	90253-13001	Pin, Ring (For Cylinder Head Set)
11434	90250-10030	Pin, Straight(For Clutch Housing Set)
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-08120	Pin, Straight, No.1
11444	96723-24020	Ring, O
11452	11452-37010	Guide, Oil Level Gage
11452	11452-37011	Guide, Oil Level Gage
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12102	12102-37010	Pan Sub-Assy, Oil, No.2
15301	15301-37010	Gage Sub-Assy, Oil Level
15301	15301-37030	Gage Sub-Assy, Oil Level
15708	15708-37011	Nozzle Sub-Assy, Oil, No.1
15708	15708-37012	Nozzle Sub-Assy, Oil, No.1
90105	90105-A0064	New Genuine Part
90105	90105-A0170	New Genuine Part
90119	90119-A0115	New Genuine Part
90119	90119-A0183	Bolt (For Transmission Control Cable Bracket)
90182	90182-A0010	New Genuine Part
91551	91551-F0835	New Genuine Part
91551	91551-F0870	BOLT FLANGE
9011908	90119-08B47	New Genuine Part
9011006040	90110-06040	BOLT HEXAGON SOCKET
9011906938	90119-06938	BOLT WWASHER
9017906326	90179-06326	NUT W-WASHER
9025311021	90253-11021	Pin, Ring
9155180616	91551-80616	BOLT FLANGE
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
11361-21011	Cover, Flywheel Housing Under	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11363-21010	Cover, Flywheel Housing Side	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11363-33010	Cover, Flywheel Housing Side	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11410-39047	Block Sub-Assy, Cylinder	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11410-39048	Block Sub-Assy, Cylinder	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11410-39235	Block Sub-Assy, Cylinder	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11420-37010	Crankcase Assy, Stiffening	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11452-37010	Guide, Oil Level Gage	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
11452-37011	Guide, Oil Level Gage	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
12102-37010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
15301-37010	Gage Sub-Assy, Oil Level	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
15301-37030	Gage Sub-Assy, Oil Level	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
15708-37011	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
15708-37012	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90105-A0064	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90105-A0170	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90110-06040	BOLT HEXAGON SOCKET	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90119-06938	BOLT WWASHER	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90119-08B47	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90119-A0115	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90119-A0183	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90126-06028	Bolt, Stud(For Oil Pan)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90179-06326	NUT W-WASHER	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90182-A0010	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90250-04097	Pin, Straight(For Camshaft Housing Rh)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90250-10030	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90253-11021	Pin, Ring	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90253-13001	Pin, Ring (For Cylinder Head Set)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90311-76002	Seal, Engine Rear Oil	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90311-78002	Seal, Engine Rear Oil	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90345-53006	Plug, W/head Taper Screw, No.1	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90910-02163	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
90919-05070	Sensor, Crank Position	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
91551-80616	BOLT FLANGE	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
91551-F0835	New Genuine Part	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
91551-F0870	BOLT FLANGE	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
96723-24020	Ring, O	Cylinder Block ([07.2010 - ] (1007- )1ZRFE,2ZRFE)
