Search › Model › ZRE141

ZRE141

Toyota COROLLA · 2010 · 3,192 parts · 169 categories

3,192 items

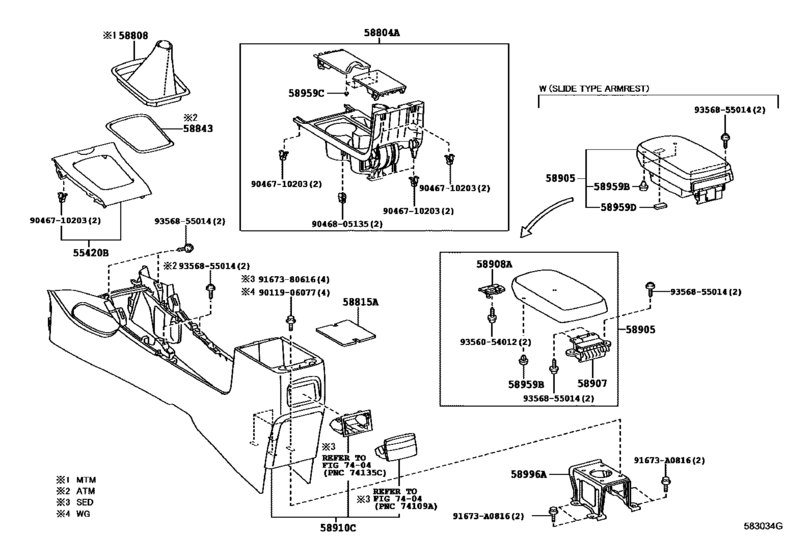

Console Box & Bracket ([04.2007 - ] (0704- )) 27

#	OEM	Part name
55420	55420-12370	Panel Assy, Instrument Cluster Finish, Center No.1
55420	55420-12400	Panel Assy, Instrument Cluster Finish, Center No.1
58804	58804-12040-B3	Panel Sub-Assy, Console, Upper
58804	58804-12040-E2	Panel Sub-Assy, Console, Upper
58815	58815-12120	Carpet, Console Box
58843	58843-12140	Bezel, Shifting Hole
58843	58843-12160	Bezel, Shifting Hole
58905	58905-12610-E4	Door Sub-Assy, Console Compartment
58905	58905-12670-B1	Door Sub-Assy, Console Compartment
58905	58905-12670-E1	Door Sub-Assy, Console Compartment
58905	58905-12590-B1	Door Sub-Assy, Console Compartment
58905	58905-12590-E0	Door Sub-Assy, Console Compartment
58907	58907-12100	Hinge Sub-Assy, Console Compartment Door
58908	58908-33030	Lock Sub-Assy, Console Compartment Door
58910	58910-12401-B1	Box Assy, Console, Rear
58910	58910-12401-E0	Box Assy, Console, Rear
58959	58959-60060	Cushion, Instrument Panel
58959	58959-12040	Cushion, Console Compartment Door - REAR CONSOLE BOX
58959	55419-12120	Cushion, Rear Console Box - CONSOLE COMPARTMENT DOOR
58996	58996-12160	Bracket, Console Box Mounting, No.2
91673	91673-A0816	BOLT FLANGE
9011906077	90119-06077	Bolt
9046710203	90467-10203	Direct
9046805135	90468-05135	Clip, Instrument Panel
9167380616	91673-80616	Bolt, W/washer
9356054012	93560-54012	Screw
9356855014	93568-55014	Screw

OEM	Part name	Category
55419-12120	Cushion, Rear Console Box - CONSOLE COMPARTMENT DOOR	Console Box & Bracket ([04.2007 - ] (0704- ))
55420-12370	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([04.2007 - ] (0704- ))
55420-12400	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([04.2007 - ] (0704- ))
58804-12040-B3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([04.2007 - ] (0704- ))
58804-12040-E2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([04.2007 - ] (0704- ))
58815-12120	Carpet, Console Box	Console Box & Bracket ([04.2007 - ] (0704- ))
58843-12140	Bezel, Shifting Hole	Console Box & Bracket ([04.2007 - ] (0704- ))
58843-12160	Bezel, Shifting Hole	Console Box & Bracket ([04.2007 - ] (0704- ))
58905-12590-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2007 - ] (0704- ))
58905-12590-E0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2007 - ] (0704- ))
58905-12610-E4	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2007 - ] (0704- ))
58905-12670-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2007 - ] (0704- ))
58905-12670-E1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([04.2007 - ] (0704- ))
58907-12100	Hinge Sub-Assy, Console Compartment Door	Console Box & Bracket ([04.2007 - ] (0704- ))
58908-33030	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([04.2007 - ] (0704- ))
58910-12401-B1	Box Assy, Console, Rear	Console Box & Bracket ([04.2007 - ] (0704- ))
58910-12401-E0	Box Assy, Console, Rear	Console Box & Bracket ([04.2007 - ] (0704- ))
58959-12040	Cushion, Console Compartment Door - REAR CONSOLE BOX	Console Box & Bracket ([04.2007 - ] (0704- ))
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([04.2007 - ] (0704- ))
58996-12160	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([04.2007 - ] (0704- ))
90119-06077	Bolt	Console Box & Bracket ([04.2007 - ] (0704- ))
90467-10203	Direct	Console Box & Bracket ([04.2007 - ] (0704- ))
90468-05135	Clip, Instrument Panel	Console Box & Bracket ([04.2007 - ] (0704- ))
91673-80616	Bolt, W/washer	Console Box & Bracket ([04.2007 - ] (0704- ))
91673-A0816	BOLT FLANGE	Console Box & Bracket ([04.2007 - ] (0704- ))
93560-54012	Screw	Console Box & Bracket ([04.2007 - ] (0704- ))
93568-55014	Screw	Console Box & Bracket ([04.2007 - ] (0704- ))
